Product Overview

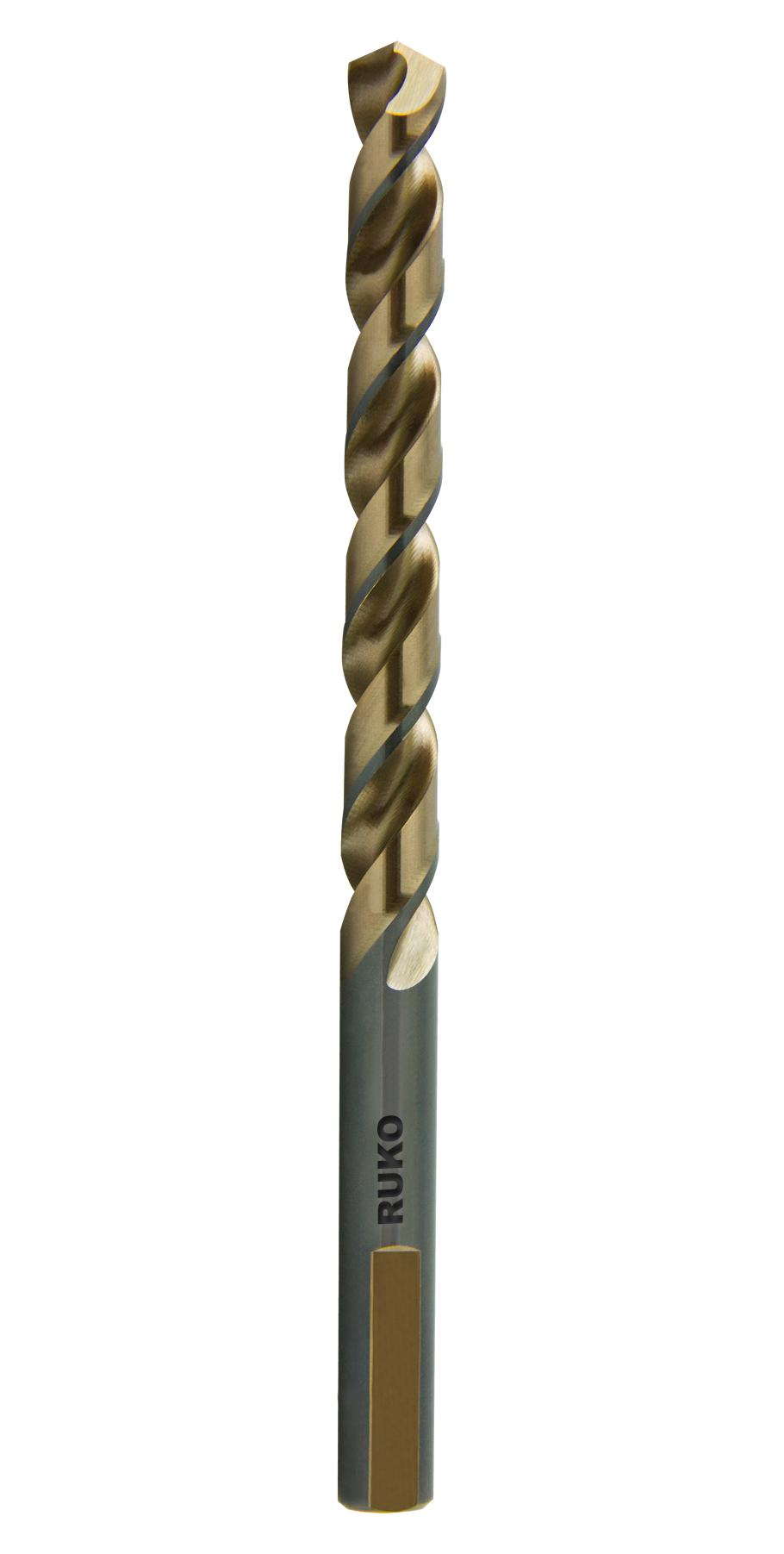

228085 is a DIN 338 type UNI, twist drill bit for all-purpose use in drilling machines and cordless drills.
- 117mm length, 8.5mm diameter and 75.0mm spiral length
- 3-way clamping surface shaft and right hand cutting direction
- HSSE-Co 5 material and bronzed/black oxidized surface coating
- 40° spiral angle and 135° spiral angle
- Shape C: split point tip grinding, h8 tolerance
- The 3-surface-shank provides an excellent fixing within the drill chuck with little effort
- Increased wear resistance of the rechargeable battery due to reduction of cutting forces
- Black bevel increases the wear resistance and prevents cold welding and build-up edges
Product details
| Drill Bit Size Metric |
8.5mm |
| Effective Length |
75mm |
| Product Range |
- |
| Drill Bit Size Imperial |
- |
| Overall Length |
117mm |
Other details
| Brand |
RUKO |
| Part Number |
228085 |
| Quantity |
Each |
| Technical Data Sheet (17.44MB) EN |
View or download |
