Product Overview

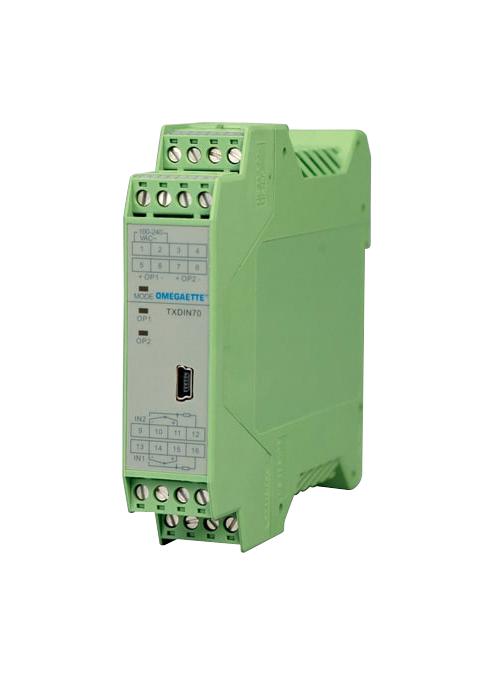

TXDIN70 is a DIN rail temperature transmitter/isolator. It provides 2 channels of configurable inputs, and supports multiple voltage, RTD, thermocouple inputs with auto reference junction compensation. Each channel has its own digital filtering and can adjust its filtering degree.
- Provides two-channel transmitters or signal isolators
- Programmable input types and ranges
- Use ungrounded thermocouple only
- Universal power supply
- Generates two isolated current outputs, 4 to 20 or 0 to 20mA
- Range of retransmission output can be freely defined
- Can be easily configured by connecting to our E8 handset display
- Operating ambient temperature range from -10 to 60°C, humidity ≤90% RH
- Dimension is 100mm H x 22.5mm W x 100mm D
Product details
| Signal Conditioner Input |
RTD, Thermocouple, Voltage |
| No. of Output Channels |
1Channels |
| Product Range |
- |
| Signal Conditioner Output |
Current |
| Accuracy % |
0.3% |
| SVHC |
Lead (04-Feb-2026) |
Other details
| Brand |
OMEGA |
| Part Number |
TXDIN70 |
| Quantity |
Each |
| Technical Data Sheet (281.10KB) EN |
View or download |
