Product Overview

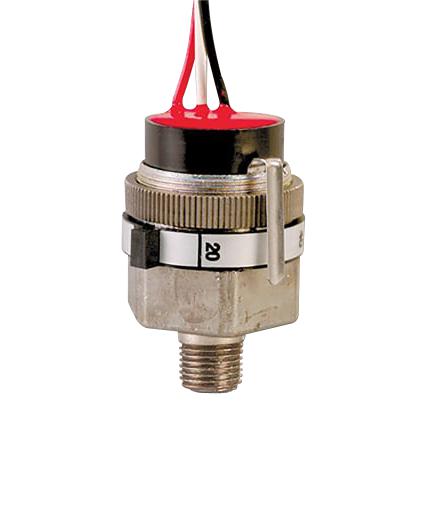

OMEGA PSW-634 Pressure Switch, Gauge, 1/8"-27 MNPT, 7.5 psi, 250 psi, SPST, 250 VAC
Product details
| Pressure Type |
Gauge |
| Pressure Port Type |
1/8"-27 MNPT |
| Operating Pressure Max |
250psi |
| Sensor Mounting |
Stud |
| Electrical Connection |
Pigtail Leads |
| Pressure Port Size |
1/8"-27 |
| Deadband Min |
2.2psi |
| Operating Temperature Min |
- |
| Product Range |
PSW-630 Series |
| Pressure Fitting Style |
1/8"-27 MNPT |
| Operating Pressure Min |
7.5psi |
| Contact Configuration |
SPST |
| Switching Voltage Max |
250VAC |
| Switching Current Max |
3A |
| Transducer Connection / Termination |
Pigtail Leads |
| Deadband Max |
9psi |
| Operating Temperature Max |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
OMEGA |
| Part Number |
PSW-634 |
| Quantity |
Each |
| Technical Data Sheet (177.54KB) EN |
View or download |
