Product Overview

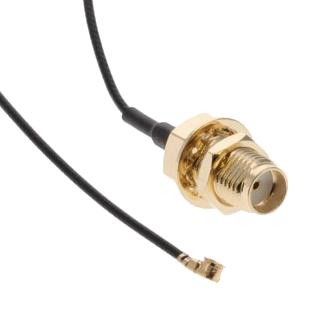

W9006M is a W90XX series low loss mini coax jumper cable. Typical applications include SMA to U.FL jumper cable, RF connections for radios and antennas, connection from radio to external antennas.
- 1.3/1.6 VSWR (2.4GHz/6GHz)
- Insertion loss (2.4GHz/6GHz): -0.8dB/-1.7dB
- 150mm cable length
- SMA female to U.FL connector types
- Operating temperature: -40 to +85°C
Product details
| Cable Length - Imperial |
6" |
| Cable Length - Metric |
150mm |
| Connector Type A |
U.FL Right Angle Plug |
| Impedance |
- |
| Product Range |
- |
| Connector to Connector |
0 |
| Coaxial Cable Type |
1.13mm |
| Connector Type B |
SMA Straight Jack |
| Jacket Colour |
Black |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
W9006M |
| Quantity |
Each |
