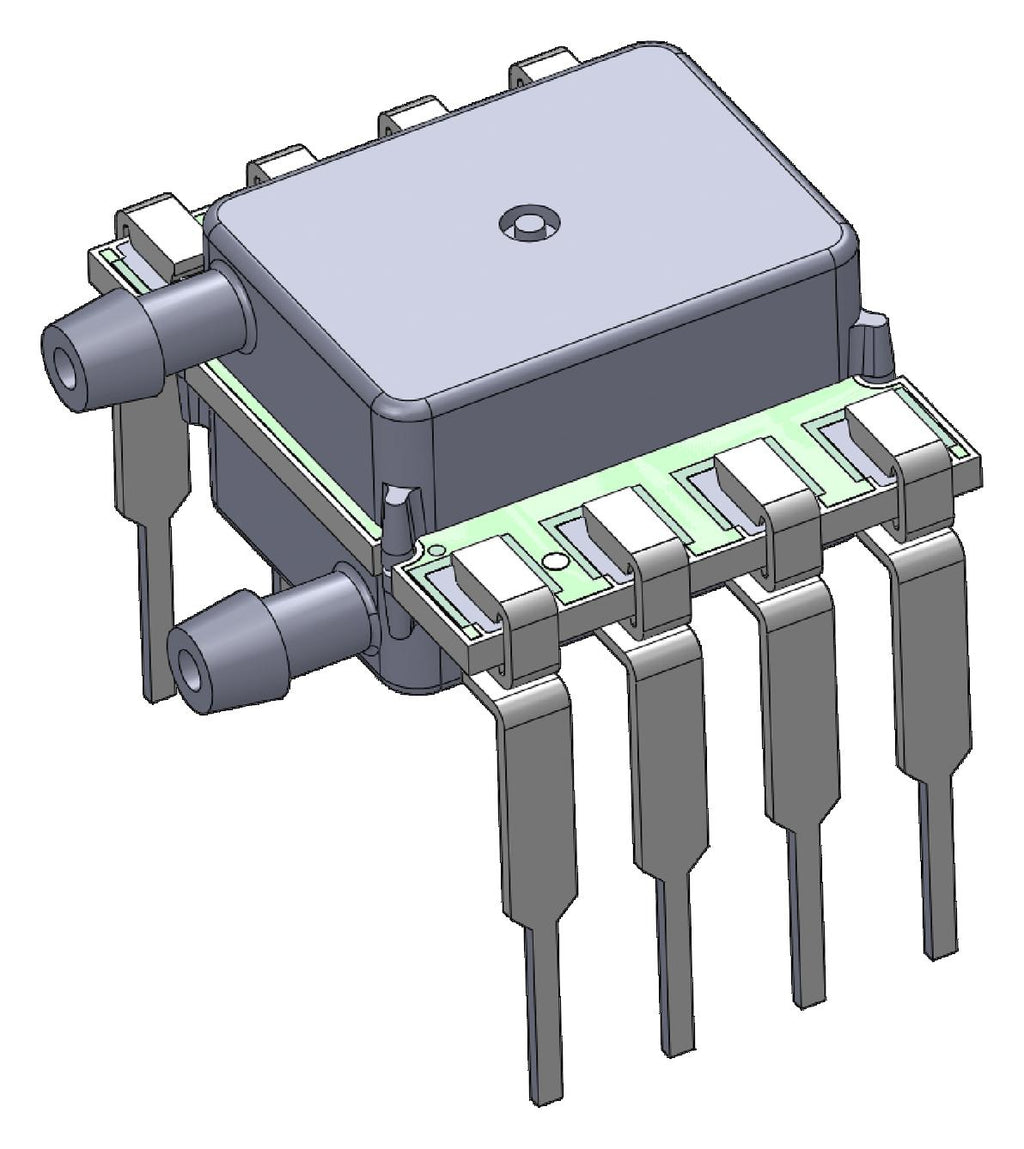

Product Overview
- ELVH series analogue and digital pressure sensor
- Differential pressure range of ±2 in H2O
- HRRD package
- Compensated temperature range from -20⁰C to 85⁰C
- No parylene coating
- Analogue output
- 10 to 90% of Vsupply transfer function
- 5VDC supply voltage
Product details
| Pressure Type |
Differential |
| Operating Pressure Min |
-2Inch-H2O |
| Pressure Measurement Type |
Differential |
| Supply Voltage Min |
- |
| Port Style |
Dual Radial Barbed |
| Sensor Case / Package |
DIP |
| Sensor Output Type |
Analogue |
| Pressure Port Type |
Single Radial Barbed |
| Output Interface |
- |
| Operating Temperature Min |
-25°C |
| Product Range |
ELVH Series |
| SVHC |
To Be Advised |
| Operating Pressure Max |
2Inch-H2O |
| Voltage Rating |
5VDC |
| Supply Voltage Max |
5VDC |
| Supply Current |
2.7mA |
| No. of Pins |
8Pins |
| Accuracy |
± 0.25% |
| Sensor Mounting |
Through Hole |
| Media Type |
- |
| Operating Temperature Max |
85°C |
| Qualification |
- |
Other details
| Brand |
AMPHENOL ALL SENSORS |
| Part Number |
ELVH-L02D-HRRD-I-NAA5 |
| Quantity |
Each |
| Technical Data Sheet (4.11MB) EN |
View or download |
