Product Overview
- ELVH series analogue and digital pressure sensor
- Absolute pressure range from 0 to 30psi
- HAND package
- Compensated temperature range from -20⁰C to 85⁰C
- No parylene coating
- I2C output
- 10 to 90% of Vsupply transfer function
- 3.3VDC supply voltage
Product details
| Pressure Type |
Absolute |
| Operating Pressure Min |
0psi |
| Operating Pressure Max |
30psi |
| Supply Voltage Min |
- |
| Port Style |
Single Axial Barbed |
| Sensor Case / Package |
DIP |
| Sensor Output Type |
I2C Digital |
| Pressure Port Type |
Single Axial Barbed |
| Output Interface |
I2C |
| Operating Temperature Min |
-25°C |
| Product Range |
ELVH Series |
| SVHC |
To Be Advised |
| Pressure Measurement Type |
Absolute |
| Voltage Rating |
3.3VDC |
| Supply Voltage Max |
3.3VDC |
| Supply Current |
3.1mA |
| No. of Pins |
8Pins |
| Accuracy |
± 0.25% |
| Sensor Mounting |
Through Hole |
| Media Type |
- |
| Operating Temperature Max |
85°C |
| Qualification |
- |
Other details
| Brand |
AMPHENOL ALL SENSORS |
| Part Number |
ELVH-030A-HAND-I-N2A4 |
| Quantity |
Each |
| Technical Data Sheet (5.51MB) EN |
View or download |

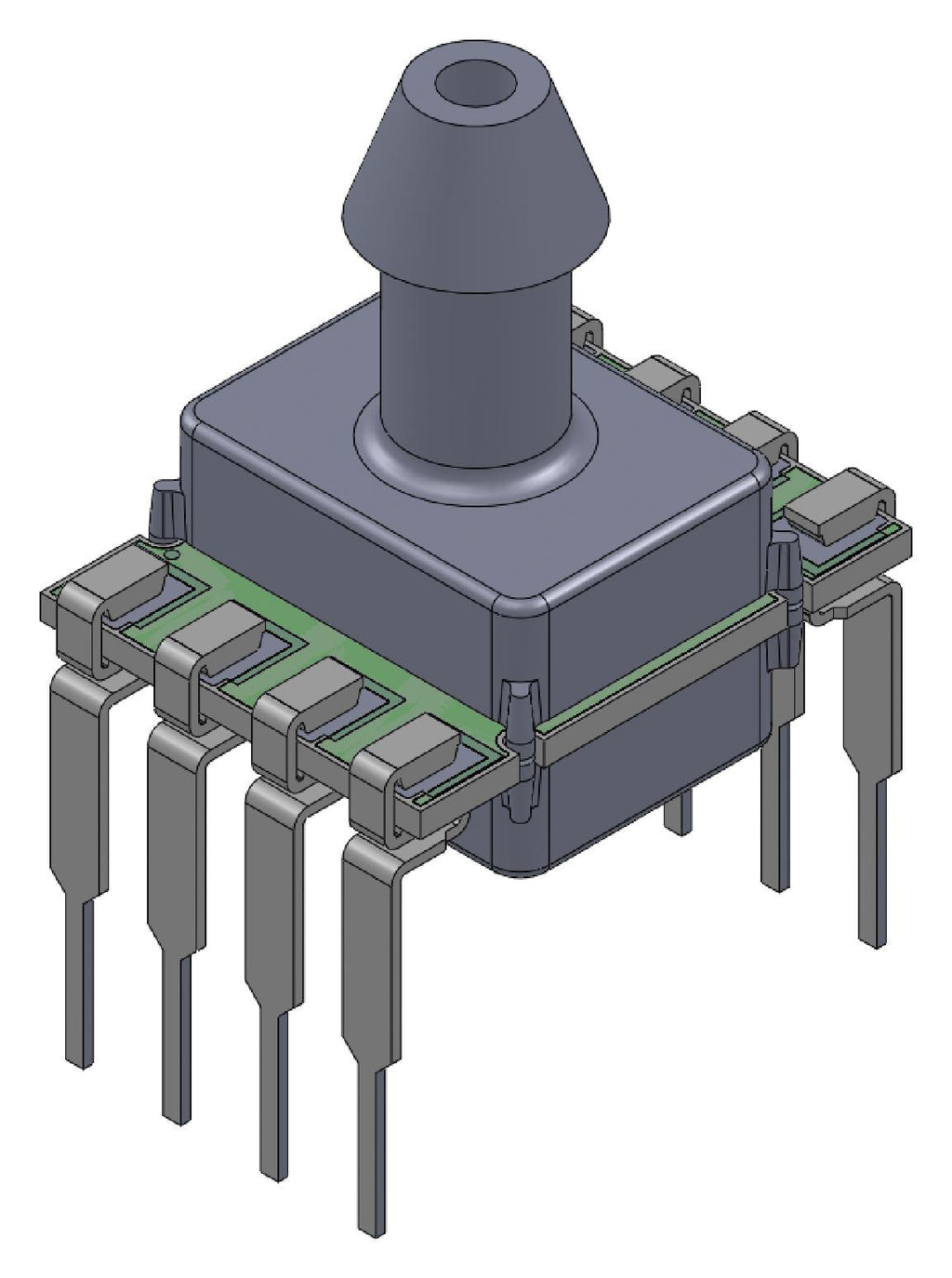

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
