Product Overview

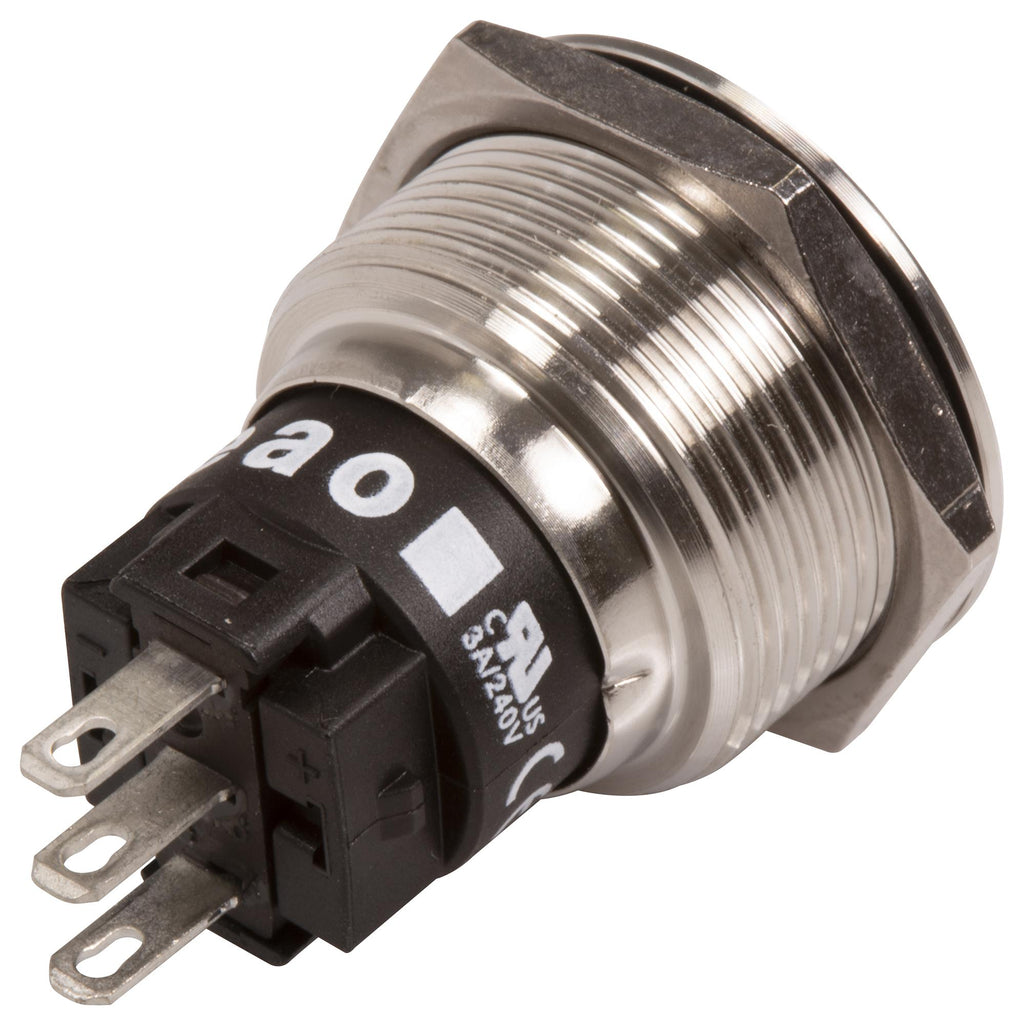

The 82-6151.2000 from EAO is an LED vandal resistant push button constructed from Stainless Steel and requires a 22mm panel cut out.
- Flush front bezel
- Switchng voltage: 240V AC
- Switching voltage: 3A
- Solder terminals: 2.8mm x 0.5mm
Product details
| Product Range |
82 Series |
| Contact Configuration |
SPDT |
| Pushbutton Actuator Style |
Round Flat Flush |
| Contact Current AC Max |
3A |
| Contact Current DC Max |
3A |
| IP Rating |
IP65, IP67 |
| Switch Terminals |
Quick Connect, Solder |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
22.3mm |
| Switch Operation |
Maintained |
| Actuator / Cap Colour |
Natural |
| Contact Voltage VAC |
240V |
| Contact Voltage VDC |
240V |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Non Illuminated |
| SVHC |
No SVHC (10-Jun-2022) |
Other details
| Brand |
EAO |
| Part Number |
82-6151.2000 |
| Quantity |
Each |
