Product Overview

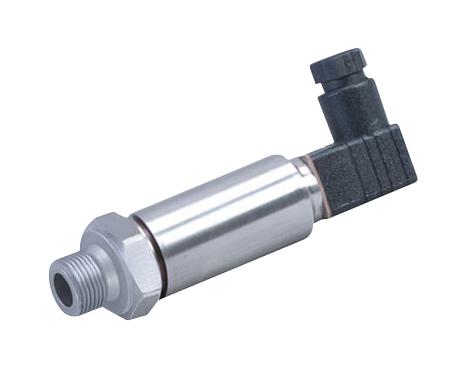

OMEGA PXM319-3.5A10V Pressure Transmitter, Absolute, BSPP Male, 0 bar, 3.5 bar, G1/4, Mini DIN Connector
Product details
| Pressure Type |
Absolute |
| Pressure Port Type |
BSPP Male |
| Operating Pressure Min |
0bar |
| Operating Pressure Max |
3.5bar |
| Pressure Port Size |
G1/4 |
| Transducer Connection / Termination |
Mini DIN Connector |
| Supply Voltage Max |
30VDC |
| Output Interface |
- |
| Housing Material |
Stainless Steel |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Sensor Output Type |
Voltage |
| Pressure Measurement Type |
Absolute |
| Voltage Rating |
30VDC |
| Port Style |
G1/4 (1/4" BSP) |
| Supply Current |
10mA |
| Supply Voltage Min |
15VDC |
| Media Type |
Multi Media |
| Operating Temperature Min |
-40°C |
| Product Range |
PXM319 Series |
Other details
| Brand |
OMEGA |
| Part Number |
PXM319-3.5A10V |
| Quantity |
Each |
| Technical Data Sheet (4.62MB) EN |
View or download |
