Product Overview

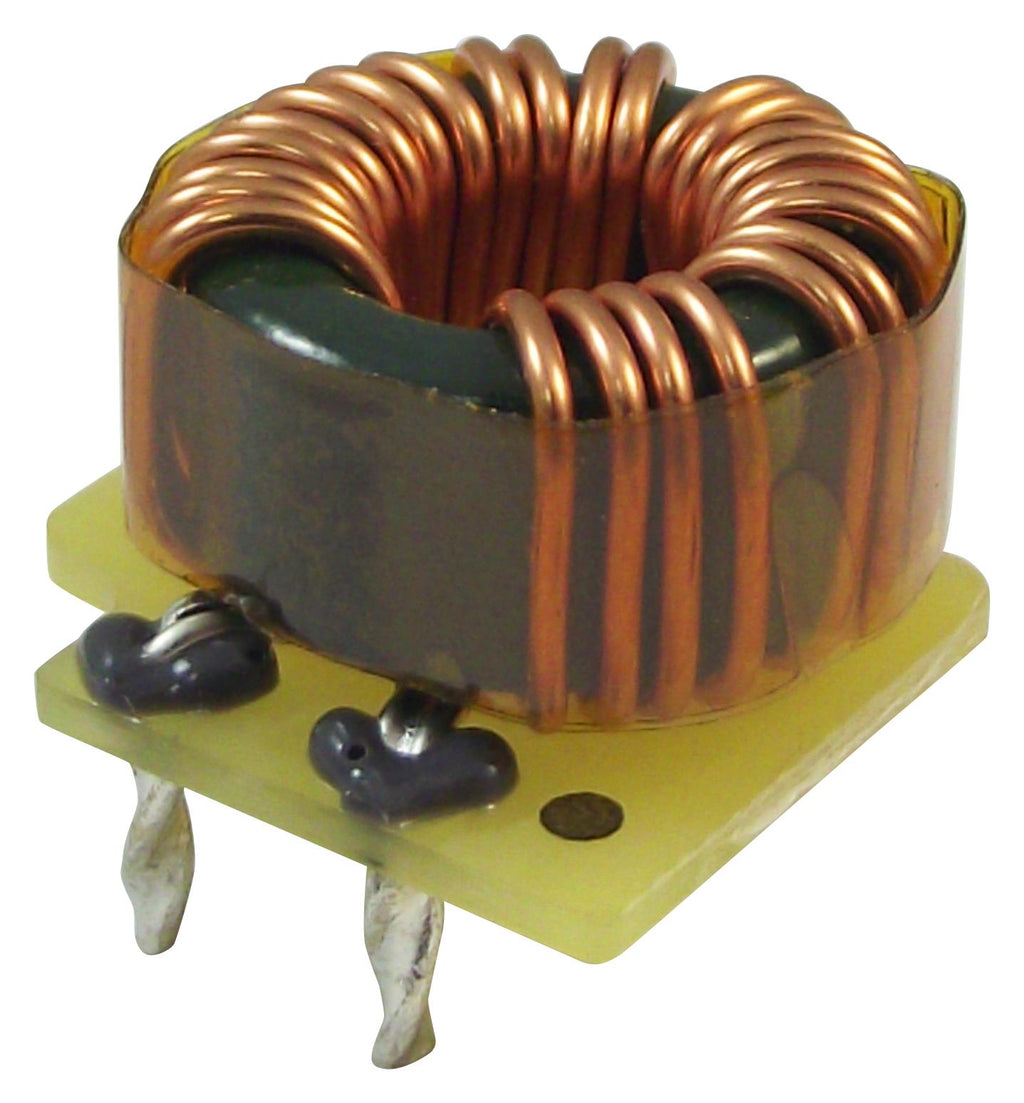

- Common mode choke with 45µH ±35% (at 100KHz / 100mV) inductance (each winding)
- 2mohm maximum impedance (DCR)
- 31.4A maximum rated current
- 500VDC maximum rated voltage (between windings)
- Operating temperature range from -40°C to +105°C
Product details
| Inductance |
45µH |
| DC Resistance Max |
2000µohm |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
| DC Current Rating |
31.4A |
| Operating Temperature Min |
-40°C |
| Product Range |
TCK Series |
Other details
| Brand |
TRACO POWER |
| Part Number |
TCK-092 |
| Quantity |
Each |
| Technical Data Sheet (486.04KB) EN |
View or download |
