Product Overview

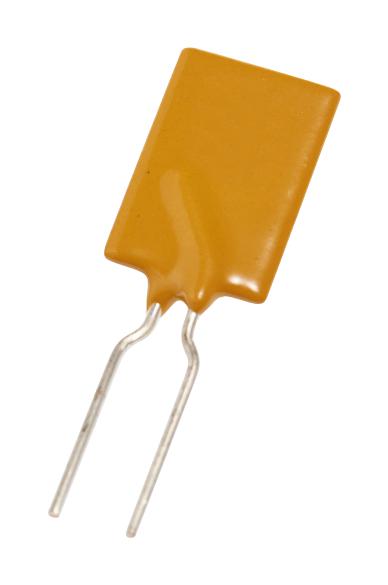

MP008044 protects 16V DC systems with an 11A hold current and 20A trip point. It's designed to withstand fault currents up to 100A and is suitable for demanding electronics applications.
- UL approved
- Resettable overcurrent protection for extended component life
- Fast trip response to safeguard sensitive circuits
- Compact radial design for easy PCB integration
- Wide operating temperature range from –40°C to +125°C
- Ideal for low-voltage DC applications like power supplies, batteries, and motors
Product details
| Product Range |
MP FHT |
| Holding Current |
11A |
| Time to Trip |
11s |
| Current Rating Max |
100A |
| Diameter |
- |
| Thickness |
3mm |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
- |
| Voltage Rating |
16VDC |
| Trip Current |
20A |
| Fuse Shape |
Rectangular |
| Lead Spacing |
10.2mm |
| Length |
21mm |
| Height |
26.1mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP008044 |
| Quantity |
Each |
| Technical Data Sheet (283.02KB) EN |
View or download |
