Product Overview

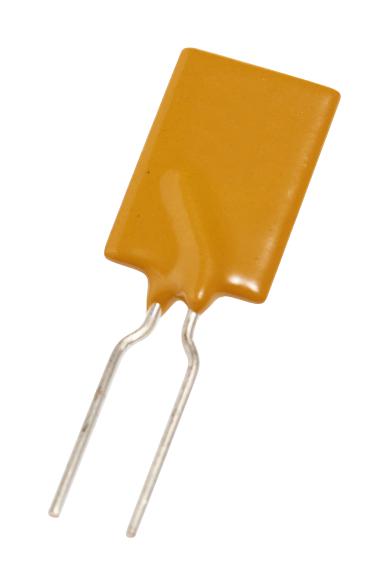

MP008040 is a 7.5A PTC resettable fuse rated at 16V DC. It trips at 13.1A, typically in 7 seconds, and is ideal for high-current circuits requiring automatic reset capability.
- UL and TUV approved
- Resettable overcurrent protection for extended component life
- Fast trip response to safeguard sensitive circuits
- Compact radial design for easy PCB integration
- Wide operating temperature range from –40°C to +125°C
- Ideal for low-voltage DC applications like power supplies, batteries, and motors
Product details
| Product Range |
MP FHT |
| Holding Current |
7.5A |
| Time to Trip |
7s |
| Current Rating Max |
100A |
| Diameter |
- |
| Thickness |
3mm |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
- |
| Voltage Rating |
16VDC |
| Trip Current |
13.1A |
| Fuse Shape |
Rectangular |
| Lead Spacing |
5.1mm |
| Length |
14mm |
| Height |
23.5mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP008040 |
| Quantity |
Each |
| Technical Data Sheet (283.02KB) EN |
View or download |
