Product Overview
MP008036 offers 5.5A holding and trips at 10A, making it suitable for medium-power 16V DC circuits. With a typical trip time of 6 seconds, it ensures timely protection against sustained overcurrent events.
- UL approved
- Resettable overcurrent protection for extended component life
- Fast trip response to safeguard sensitive circuits
- Compact radial design for easy PCB integration
- Wide operating temperature range from –40°C to +125°C
- Ideal for low-voltage DC applications like power supplies, batteries, and motors
Product details
| Product Range |
MP FHT |
| Holding Current |
5.5A |
| Time to Trip |
6s |
| Current Rating Max |
100A |
| Diameter |
- |
| Thickness |
3mm |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
- |
| Voltage Rating |
16VDC |
| Trip Current |
10A |
| Fuse Shape |
Rectangular |
| Lead Spacing |
5.1mm |
| Length |
11.2mm |
| Height |
18.9mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP008036 |
| Quantity |
Each |
| Technical Data Sheet (283.02KB) EN |
View or download |

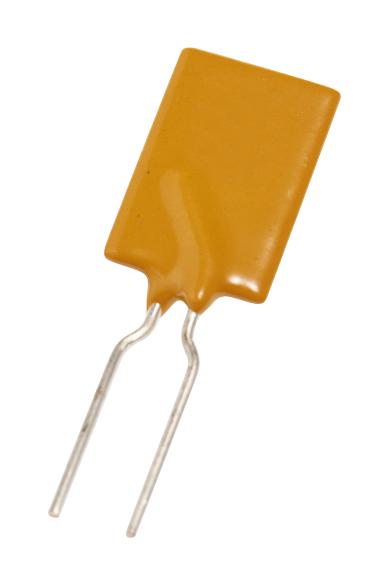

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
