Product Overview

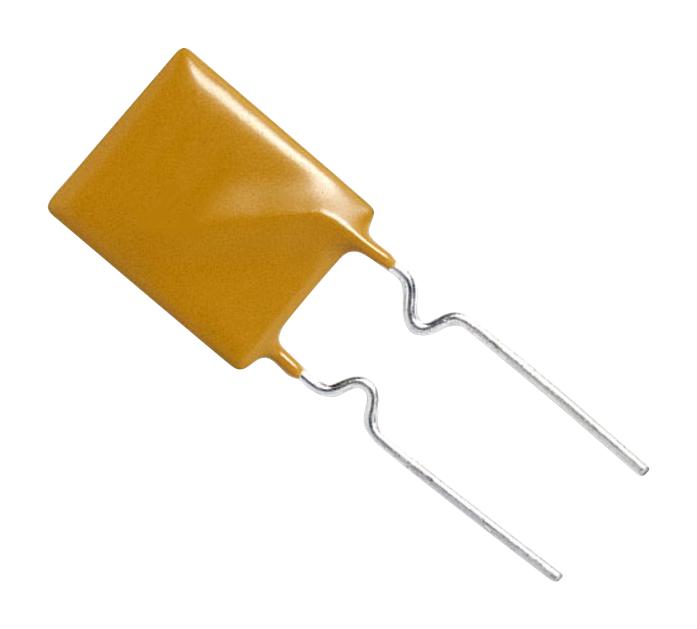

MP008030 from is a 700mA radial resettable fuse designed for 30V DC circuits. It trips at 1.4A in about 3.2 seconds, providing reliable protection against short circuits and overloads. Its small size makes it suitable for compact PCB designs.
- UL approved
- Resettable overcurrent protection for extended component life
- Fast trip response to safeguard sensitive circuits
- Compact radial design for easy PCB integration
- Wide operating temperature range from –40°C to +125°C
- Ideal for low-voltage DC applications like power supplies, batteries, and motors
Product details
| Product Range |
MP FHT |
| Holding Current |
700mA |
| Time to Trip |
3.2s |
| Current Rating Max |
40A |
| Diameter |
- |
| Thickness |
3mm |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
- |
| Voltage Rating |
30VDC |
| Trip Current |
1.4A |
| Fuse Shape |
Rectangular |
| Lead Spacing |
5.1mm |
| Length |
6.9mm |
| Height |
10.8mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP008030 |
| Quantity |
Each |
| Technical Data Sheet (283.02KB) EN |
View or download |
