Product Overview

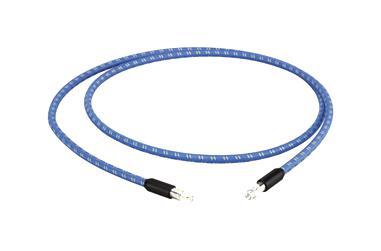

SF550S/11SK/11SK/1000MM is a SUCOFLEX® 500 series high-end microwave cable assembly that is designed to deliver consistent, repeatable measurements over time. With a proprietary cable and connector design, this assembly offers exceptional phase and amplitude stability, along with excellent return and insertion loss at frequencies up to 70GHz. HUBER+SUHNER’s patented innovative Rotary Swaging technology blends the strengths of both solid and stranded conductors into a single optimized design. This approach minimizes signal loss, ensures superior electrical stability during bending, and enhances cable flexibility, all while extending product's lifespan. It features a rotary-swaged, low-loss inner conductor and a rugged construction, enabling it to withstand over 100,000 flex cycles without any degradation in performance. This durability ensures a long, reliable service life, making it a suitable for both test and measurement applications as well as high-speed digital environments.
- High performance up to 70GHz
- Very long service life >100’000 cycles
- Excellent insertion loss
- Phase and amplitude stability with flexure and movement
- Torque, crush, and kink resistance
- Abrasion, moisture and dust resistance
- Extremely precise and repeatable measurements
- Minimizes replacement needs and reduces investment costs
- Designed for easy handling and usability
- Short delivery time, excellent price-performance ratio
Product details
| Cable Length - Imperial |
39.4" |
| Cable Length - Metric |
1m |
| Connector Type A |
2.92mm Straight Plug |
| Impedance |
50ohm |
| Product Range |
Sucoflex 500 Series |
| Connector to Connector |
2.92mm Plug to 2.92mm Plug |
| Coaxial Cable Type |
SUCOFLEX 550S |
| Connector Type B |
2.92mm Straight Plug |
| Jacket Colour |
Blue |
Other details
| Brand |
HUBER+SUHNER |
| Part Number |
SF550S/11SK/11SK/1000MM |
| Quantity |
Each |
