Product Overview

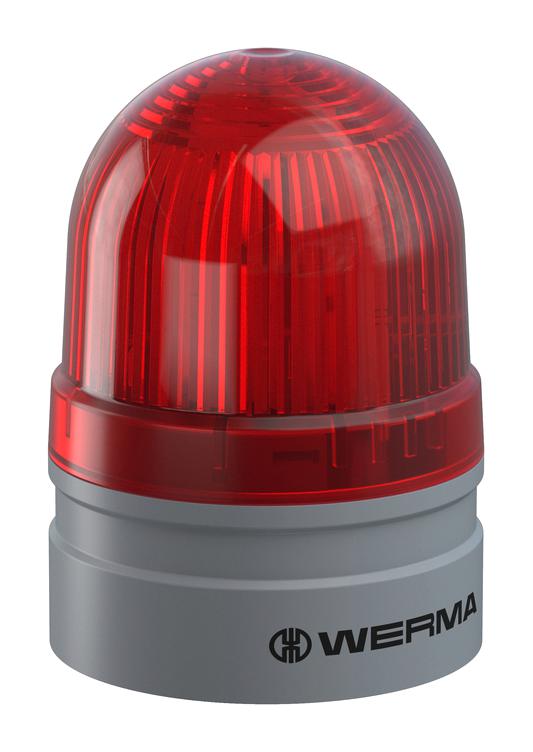

26011075 is a small LED beacon from the EvoSIGNAL series.
- Mini TwinLIGHT 24VAC/DC RD for installations where space is limited
- TwinLIGHT: two light effects in one product (continuous and blinking light)
- PC, PC/ABS material, grey colour housing and red dome
- Operating voltage range from 12VAC/DC, operating voltage frequency of 50Hz
- IP66 protection rating, protection class 2, pollution degree 3
- 72mA rated operational current, 1600mA rated inrush current
- Push-in terminal connection
- Maximum cross-sectional area of 1.5mm²/16AWG
- Working temperature range from -30 to 60°C
- LED light source, red light colour, 1Hz blink frequency
Product details
| Supply Voltage VAC |
24V |
| Module Lens Colour |
Red |
| Tones |
- |
| Sound Pressure Level (SPL) |
- |
| External Height |
85mm |
| Operating Temperature Min |
-30°C |
| Product Range |
EvoSIGNAL Mini Series |
| Supply Voltage VDC |
24V |
| Visual Signal Type |
TwinLight |
| IP / NEMA Rating |
IP66 |
| Lens Diameter |
62mm |
| Connection Type |
Push-In Terminal |
| Operating Temperature Max |
60°C |
| SVHC |
Lead (21-Jan-2025) |
Other details
| Brand |
WERMA |
| Part Number |
26011075 |
| Quantity |
Each |
| Technical Data Sheet (295.79KB) EN |
View or download |
