Description
Product Overview

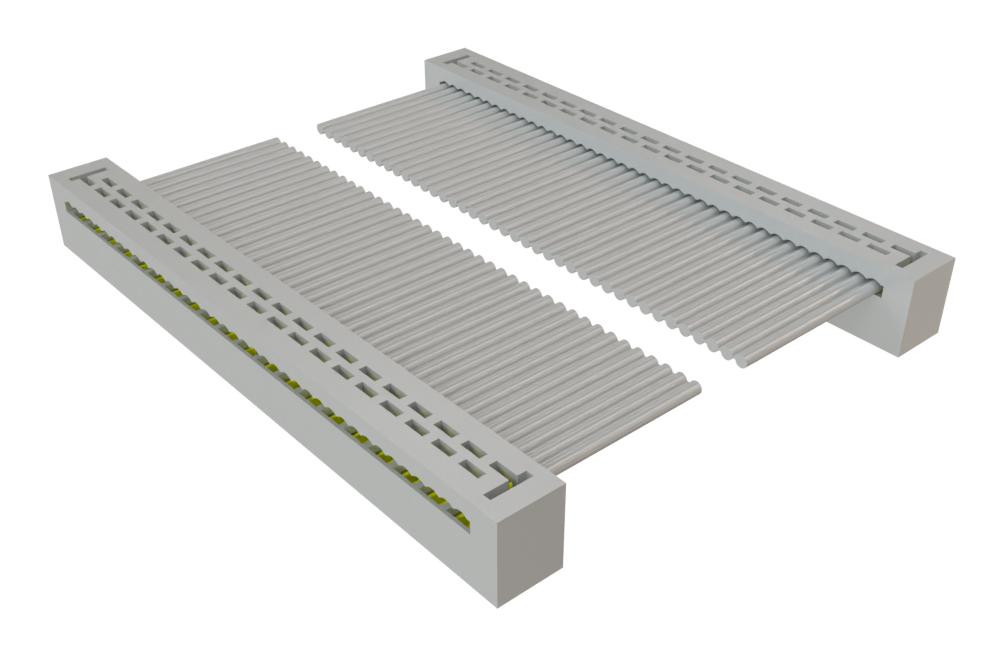

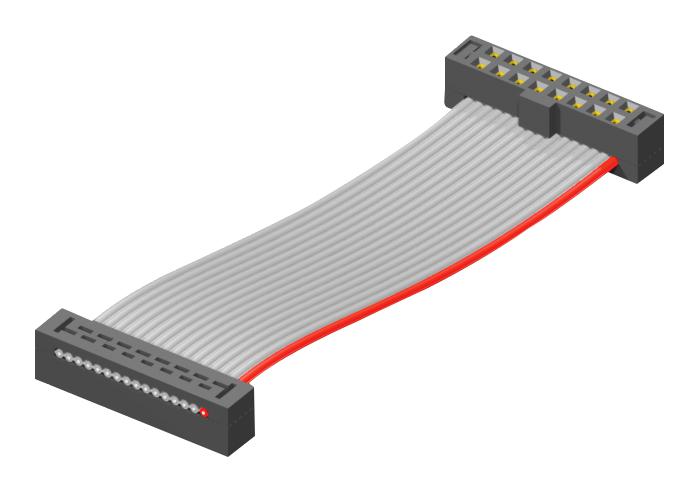

The TCSD-20-D-18.00-01-N from Samtec is a 2.00mm (0.0787") pitch, double ended TCSD series Tiger Eye IDC ribbon socket assembly with 40 contacts. This socket strip mates with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM (-SR), ZSTMM series connectors. It complies with UL E111594 standard. Accepts lead size from 0.48mm (0.019inch) to 0.53mm (0.021inch) and insertion depth ranges from 2.8mm (0.113inch) to 3.17mm (0.125inch).
- High reliability Tiger Eye contacts
- Notch polarisation
- Assembled length is 18inch
- Current rating is 2.8A per pin (1 pin powered per row) (TCSD/STMM)
- 28AWG, 7/36 stranded, tinned, copper wire with gray PVC insulator
- Black glass filled polyester insulator
- Operating temperature range from -40?C to +105?C
- Contact resistance is 15mohm
- Beryllium copper (BeCu) contacts with 30?" (0.76?m) gold plating on contact area
Applications
Industrial
Product details
| Connector to Connector | IDC Receptacle to IDC Receptacle |
| Cable Length - Imperial | 18" |
| Connector Pitch | 2mm |
| Cable Assembly Type | Double Row Female IDC Cable Assembly |
| No. of Positions | 40Ways |
| Cable Length - Metric | 457.2mm |
| Product Range | Tiger Eye TCSD Series |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | SAMTEC |
| Part Number | TCSD-20-D-18.00-01-N |
| Quantity | Each |
| Technical Data Sheet (73.00B) EN | View or download |
| Enhanced Product Overview (54.00B) EN | View or download |
| Manufacturer Catalogue (17.23MB) EN | View or download |
| Technical Data Sheet (1001.48KB) EN | View or download |
