Description
Product Overview

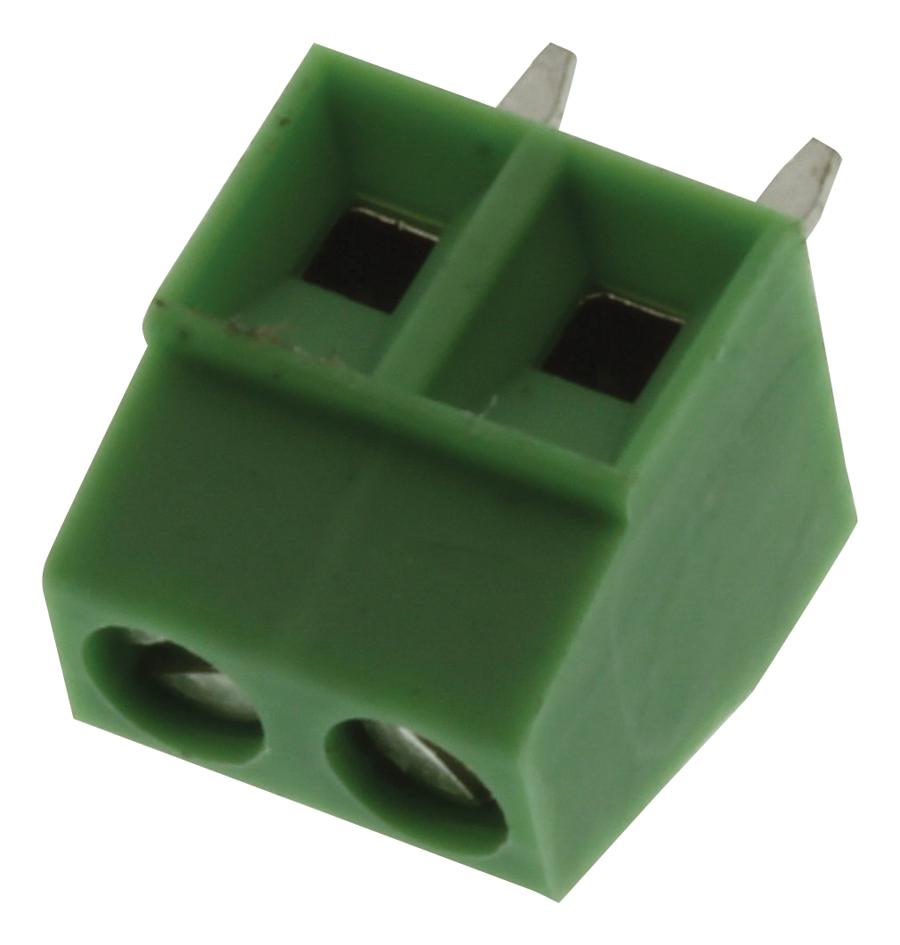

The 1727010 is a 2-way Wire-to-board PCB Terminal Block made of PA insulation that allows connection of two conductors. The MKDS 1/ 2-3,81 has extremely small design for the respective conductor cross section. It features screw connection with tension sleeve and wave soldering.
- Green color
- Well-known connection principle allows worldwide use
- UL94V-0 Flammability rating
- Low temperature rise, maximum contact force
Applications
Industrial
Product details
| Pitch Spacing | 3.81mm |
| Wire Size AWG Min | 26AWG |
| Conductor Area CSA | 1.5mm² |
| Rated Current | 10A |
| Block Orientation | Through Hole Right Angle |
| SVHC | No SVHC (21-Jan-2025) |
| No. of Positions | 2Ways |
| Wire Size AWG Max | 16AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 300V |
| Product Range | MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1727010 |
| Quantity | Each |
| Product Change Notice (268.29KB) EN | View or download |
| Technical Data Sheet (112.37KB) EN | View or download |
