Product Overview
Also known as
4ASYBW3220A3FJ
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.22µF |
| Typical Applications |
Snubber |
| Voltage(AC) |
750V |
| Humidity Rating |
- |
| Lead Spacing |
37.5mm |
| Peak Current |
455A |
| ESR |
8200µohm |
| Product Length |
41.5mm |
| Product Height |
40mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 4 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
3kV |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
2.07kV/µs |
| RMS Current (Irms) |
18A |
| Product Diameter |
- |
| Product Width |
20mm |
| Ripple Current |
- |
| Product Range |
C4AS Series |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C4ASYBW3220A3FJ |
| Quantity |
Each |
| Product Change Notice (467.38KB) EN |
View or download |

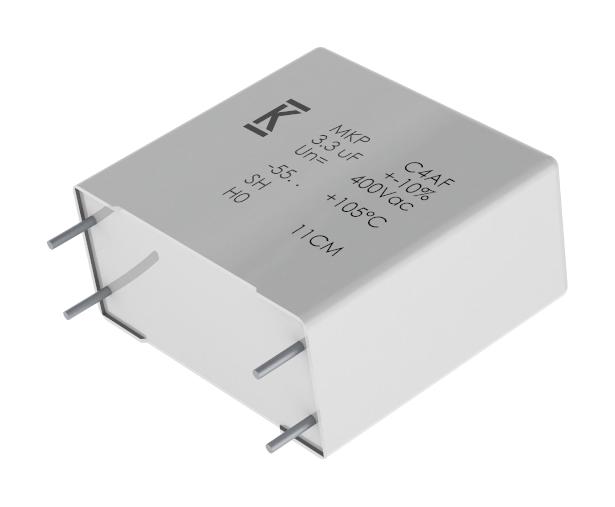

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
