Product Overview

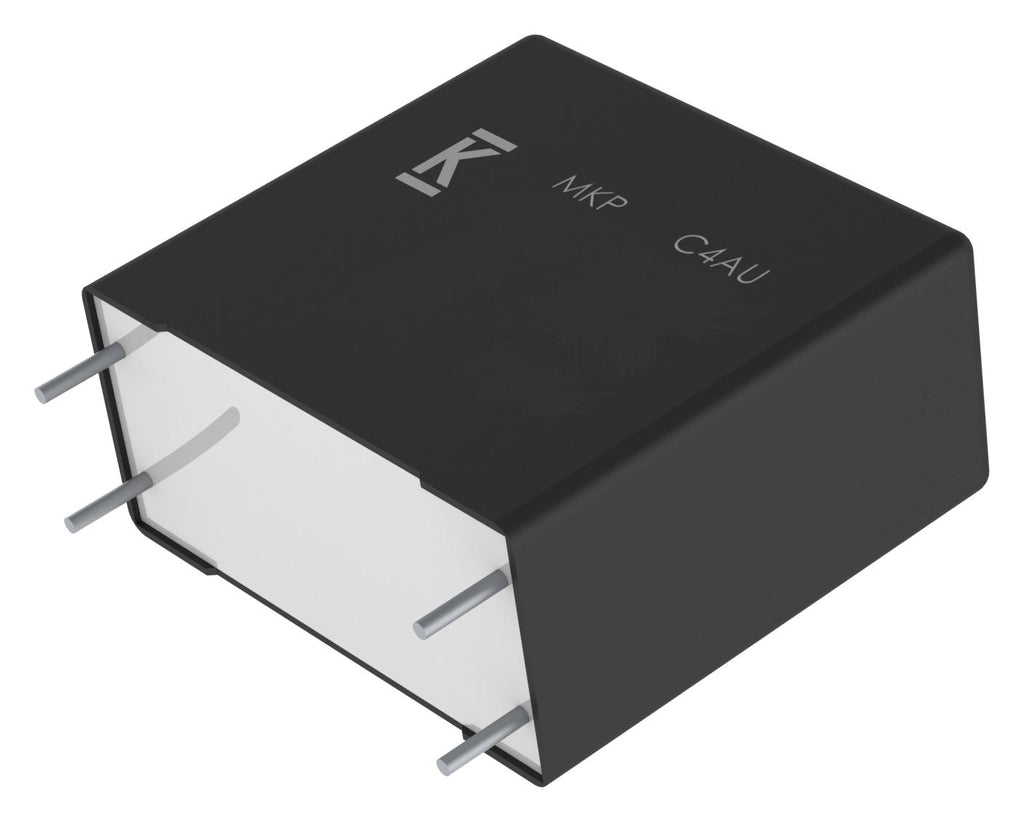

C4AU series radial leaded, printed circuit board mount power film capacitors for harsh environment DC link (automotive grade) applications. C4AU series capacitors are polypropylene metallized film capacitors with a rectangular, plastic box-type design, filled with resin and uses 2 or 4 tinned wires. These capacitors are intended to withstand harsh environmental conditions. Automotive grade devices meet the demanding Automotive Electronics Council's AEC-Q200 qualification requirements. Typical applications include DC filtering, DC link, power electronics, energy storage, renewable energy grid interface, motor drives and automotive applications.
- Miniaturized size
- THB 85°C/85% R.H. VR 1000 hours
- Self-healing, low loss and low ESL
- High ripple current and high dV/dt
- High capacitance density
- High contact reliability
- Suitable for high frequency applications
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
16µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
GRADE III (Test Condition B) |
| Lead Spacing |
- |
| Peak Current |
560A |
| ESR |
4600µohm |
| Product Length |
42mm |
| Product Height |
44mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 4 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
900V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
35V/µs |
| RMS Current (Irms) |
18.1A |
| Product Diameter |
- |
| Product Width |
24mm |
| Ripple Current |
- |
| Product Range |
C4AU Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C4AUOBW5160M3HJ |
| Quantity |
Each |
| Product Change Notice (267.37KB) EN |
View or download |
