Product Overview

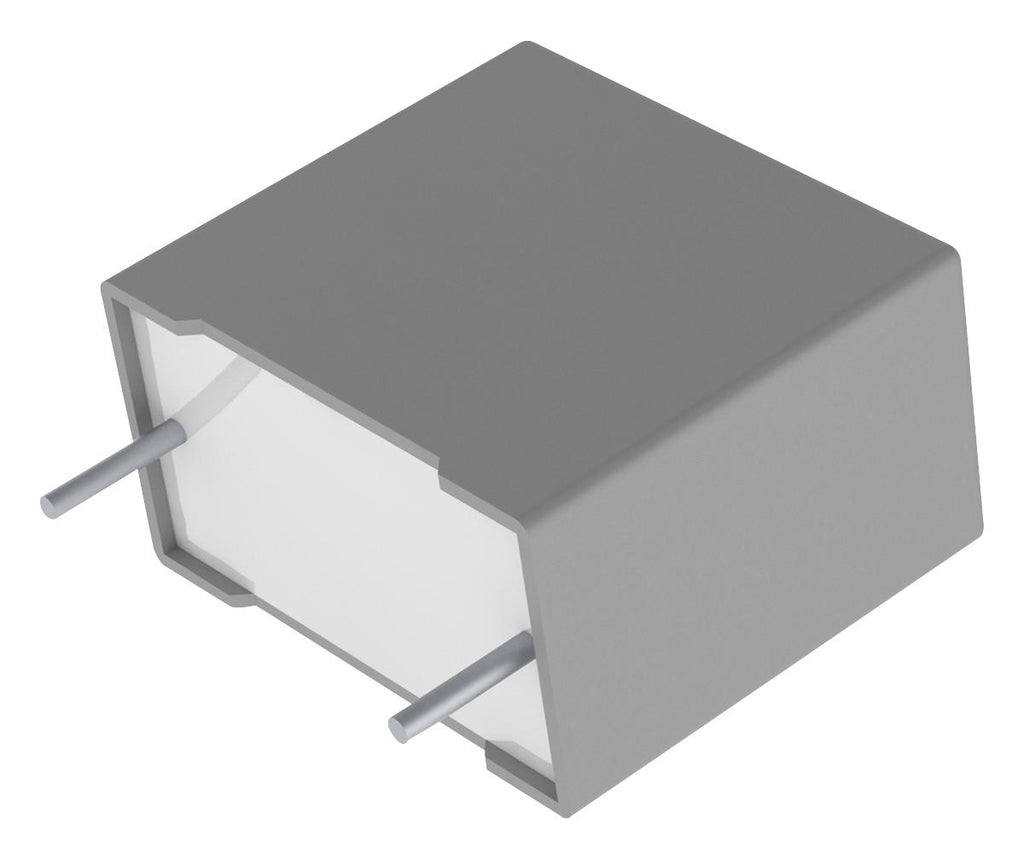

C4AQ P series radial leaded, printed circuit board mount power film capacitors are suitable for DC Link (automotive grade) applications. C4AQ P series is a polypropylene metallized film capacitor with a rectangular, plastic box-type design filled with resin and uses 2 or 4 tinned wires. Typical applications include DC filtering, DC link, power electronics, energy storage, renewable energy grid interface, motor drives and automotive applications.
- Automotive grade AEC-Q200 qualified
- Self-healing, low loss
- Low ESL, high ripple current
- High capacitance density, high contact reliability
- Suitable for high frequency applications
- High dV/dt
- Long performance life at 125°C
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
3.3µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
- |
| Lead Spacing |
27.5mm |
| Peak Current |
231A |
| ESR |
0.0142ohm |
| Product Length |
31.5mm |
| Product Height |
28mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
900V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
70V/µs |
| RMS Current (Irms) |
7.9A |
| Product Diameter |
- |
| Product Width |
14mm |
| Ripple Current |
- |
| Product Range |
C4AQ-P Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C4AQOBU4330P1YJ |
| Quantity |
Each |
| Product Change Notice (267.37KB) EN |
View or download |
