Product Overview

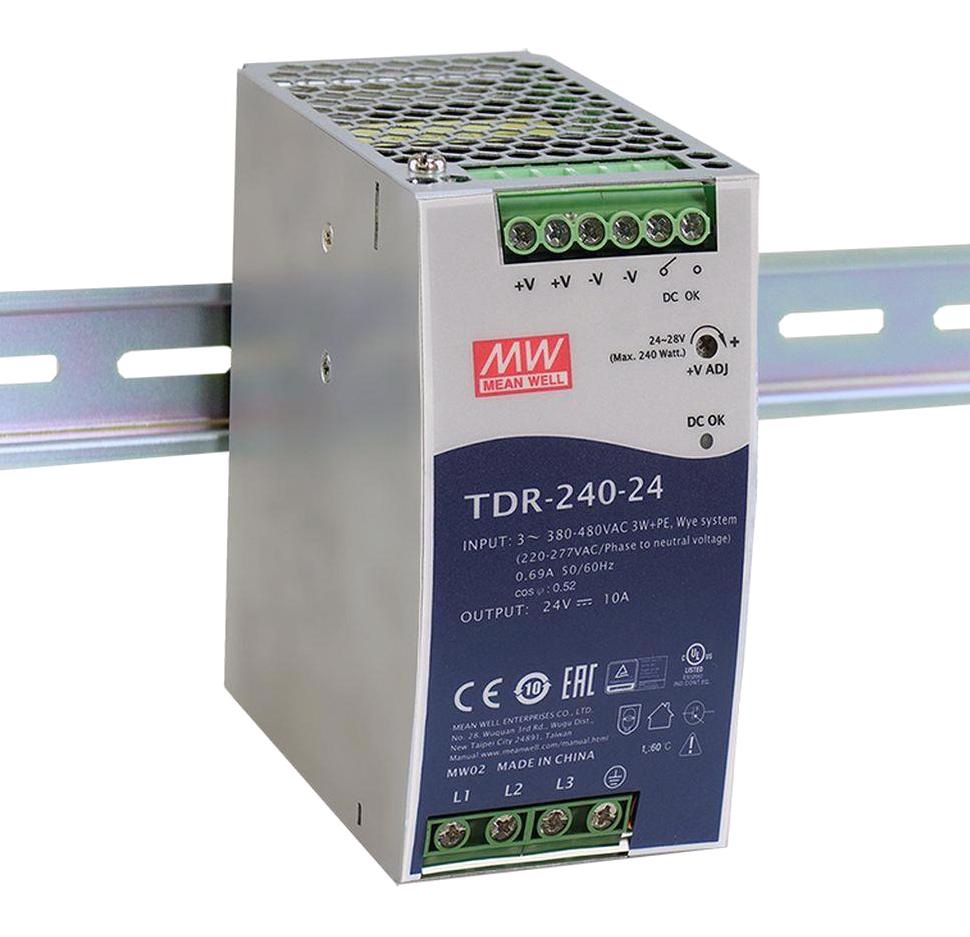

TDR-240-24 is a TDR-240 series one economical slim 240W DIN rail power supply, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. This conforms to BS EN/EN61000-3-2, the norm the European union regulates for harmonic current. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus make a very competitive power supply solution for industrial applications. It includes short circuit, overload, over voltage, over temperature protection. Application includes industrial control system, semiconductor fabrication equipment, factory automation, electro-mechanical apparatus. Approved by UL61010-1, UL61010-2-201, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004 design refer to AS/NZS61558-1/-2-16.
- Input voltage range from 3-Phase 340 to 550VAC/480 to 780VDC
- Output voltage is 24V, output rated current is 10A
- Output rated power is 240W, typical efficiency is 92%
- 63mm slim width, cooling by free air convection
- Full power between -30 to +60°C, built-in constant current limiting circuit
- DC OK relay contact
- 3 years warranty
- Working temperature range from -30 to +70°C
- Dimension is (W x H x D) 63 x 125.2 x 113.5mm
Product details
| Power Supply Applications |
Laboratory Equipment |
| Output Power Max |
240W |
| Output Current - Output 1 |
10A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Adjustable, Fixed |
| SVHC |
No SVHC (04-Feb-2026) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
24VDC |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
340V AC to 550V AC |
| Product Range |
TDR-240 Series |
Other details
| Brand |
MEAN WELL |
| Part Number |
TDR-240-24 |
| Quantity |
Each |
| Technical Data Sheet (153.82KB) EN |
View or download |
