Product Overview

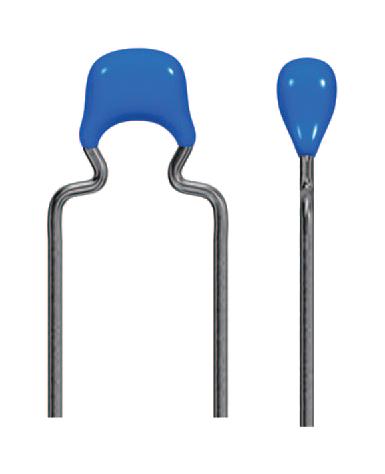

FG28C0G1H681JNT00 is a FG series MLCC with dipped radial lead (halogen-free, commercial grade). Typical applications include noise reduction measures for various motors, bypass capacitors and smoothing capacitors for switching power sources, snubber circuits and PFC input filters.
- PCB deflection countermeasure
- Acoustic noise countermeasure
- Capacitance value is 680pF with ±5% tolerance
- C0G dielectric
- 50VDC rated voltage
- Lead spacing is 5mm
- Operating temperature range from -55 to 125°C
Product details
| Capacitance |
680pF |
| Capacitance Tolerance |
± 5% |
| Dielectric Characteristic |
C0G / NP0 |
| Capacitor Case / Package |
Radial Leaded |
| Product Diameter |
- |
| Product Width |
2.5mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Voltage(DC) |
50V |
| Capacitor Terminals |
PC Pin |
| Lead Spacing |
5mm |
| Product Range |
FG Series |
| Product Length |
4mm |
| Product Height |
5.5mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
