Product Overview
NXP LPC5502JBD64E ARM MCU, LPC Family LPC5500 Series Microcontrollers, ARM Cortex-M33F, 32 bit, 96 MHz, 64 KB
Product details
| Product Range |
LPC Family LPC5500 Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
64KB |
| IC Case / Package |
HTQFP |
| Interfaces |
CAN, I2C, I2S, SPI, UART, USART |
| ADC Channels |
9Channels |
| Supply Voltage Min |
1.8V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
LPC5500 |
| MSL |
MSL 3 - 168 hours |
| Device Core |
ARM Cortex-M33F |
| Operating Frequency Max |
96MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
45I/O's |
| RAM Memory Size |
48KB |
| ADC Resolution |
16Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
105°C |
| MCU Family |
LPC |
| Qualification |
- |
| SVHC |
No SVHC (27-Jun-2024) |
Other details

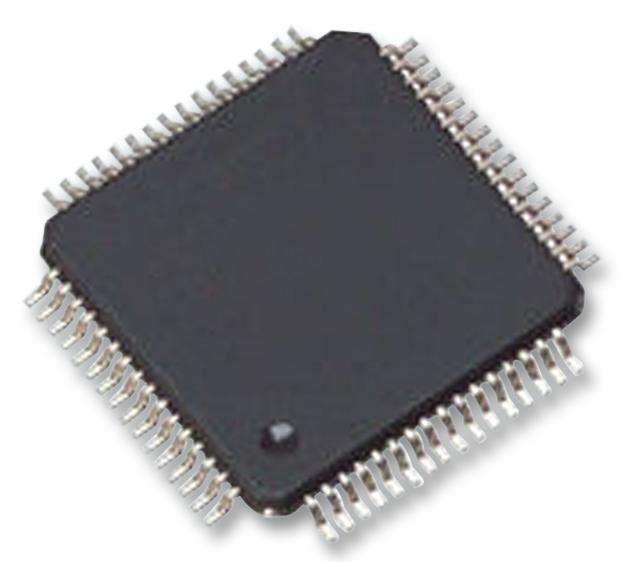

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
