Product Overview
B43647 series aluminium electrolytic snap-in capacitors. Typical applications include power supplies, frequency converters, uninterruptible power supplies, medical appliances and solar inverters.
- Long life grade capacitors
- Extremely high CV product, ultra compact
- High reliability, high ripple current capability
- Pass needle flame test according to IEC 60695-11-5 for all flame exposure times up to 120s
- Charge/discharge proof, polar
- Aluminium case, insulated with PET sleeve without insulation sheet at the can bottom
- Snap-in solder pins to hold component in place on PC-board
- Minus pole marking on case surface, minus pole not insulated from case
- Overload protection by safety vent on the base
Product details
| Capacitance |
470µF |
| Voltage(AC) |
- |
| Capacitor Terminals |
Snap-In |
| Polarity |
Polar |
| Product Diameter |
35mm |
| Lead Spacing |
10mm |
| Ripple Current |
1.6A |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Voltage(DC) |
450V |
| Capacitance Tolerance |
± 20% |
| Lifetime @ Temperature |
2000 hours @ 105°C |
| Product Range |
B43647 Series |
| Product Height |
30mm |
| ESR |
0.25ohm |
| Operating Temperature Min |
-25°C |
| Qualification |
- |
Other details

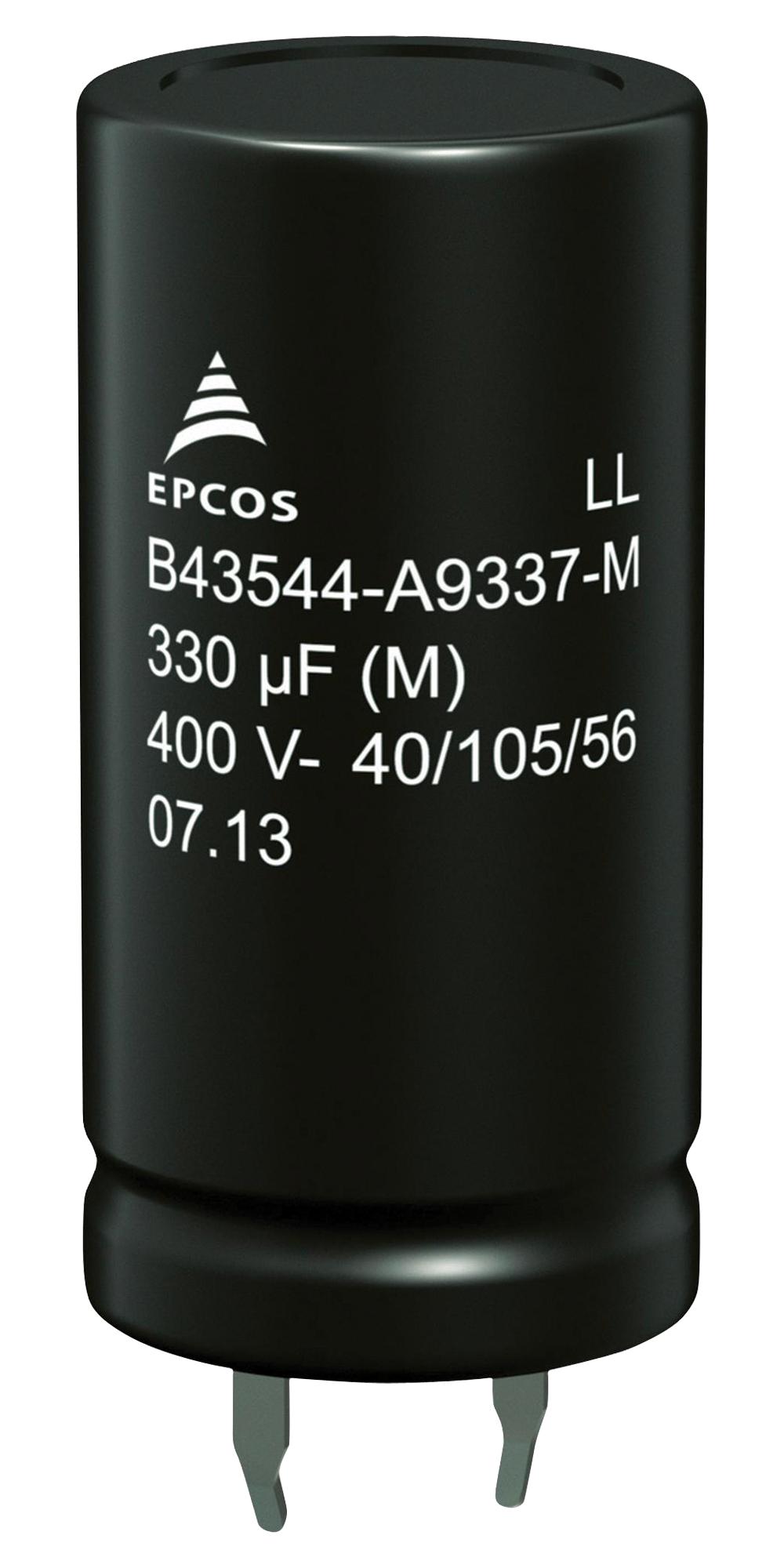

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
