Product Overview

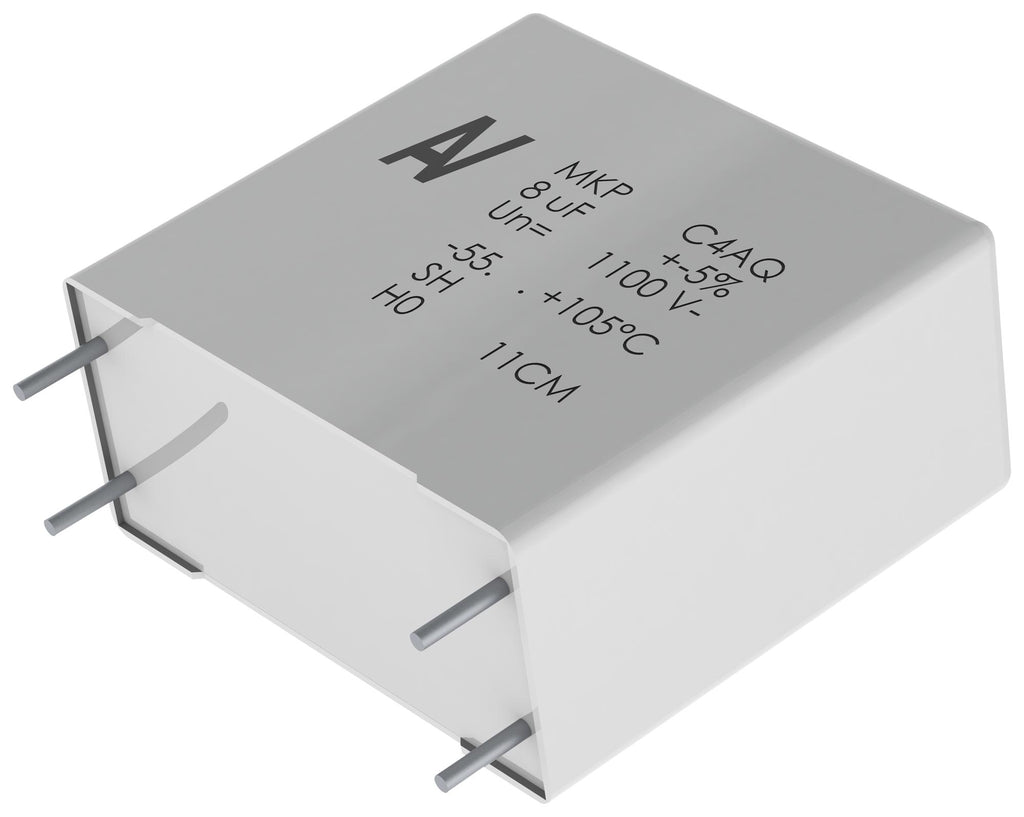

C4AQ series printed circuit board mount radial leaded power film capacitors are suitable for DC Link (automotive grade). C4AQ series is a polypropylene metallized film capacitor with a rectangular, plastic box-type design filled with resin and uses 2 or 4 tinned wires. Typical applications include DC filtering, DC link, power electronics, energy storage, renewable energy grid interface, motor drives and automotive applications.
- Automotive grade AEC–Q200 qualified
- Self-healing, low loss
- Low ESL, high ripple current
- High capacitance density, high contact reliability
- Suitable for high frequency applications
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
14µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
- |
| Lead Spacing |
- |
| Peak Current |
229A |
| ESR |
5400µohm |
| Product Length |
42mm |
| Product Height |
25mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 4 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
1.1kV |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
16V/µs |
| RMS Current (Irms) |
15.9A |
| Product Diameter |
- |
| Product Width |
43mm |
| Ripple Current |
- |
| Product Range |
0 |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C4AQQLW5140A38J |
| Quantity |
Each |
| Product Change Notice (267.37KB) EN |
View or download |
