Product Overview
Standard Micro-Fit cable assemblies deliver an off-the-shelf solution with a variety of cable lengths and a 3.00mm pitch connector with a 6.5A to 8.5A maximum current rating to facilitate both prototyping and global production.

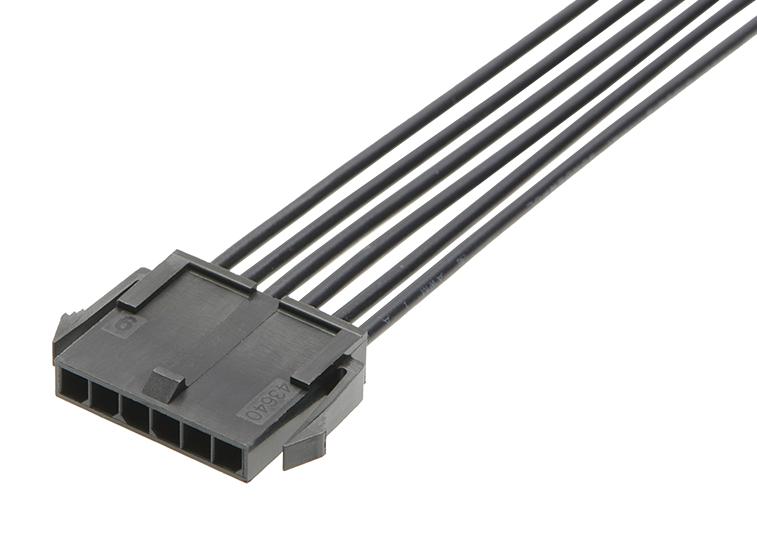

- Micro-Fit 3.0 female to pigtail Off-the-Shelf (OTS) cable assembly
- Delivers a high density, lower power connection
- Reduces terminal back-out
- Available in single row configurations, provides design flexibility
- Dual ended connector, black colour nylon resin
- UL 10002 discrete wire
Product details
| Connector to Connector |
Micro-Fit 3.0 Receptacle to Free End |
| Connector Pitch |
3mm |
| Cable Length - Metric |
600mm |
| Product Range |
Micro-Fit 3.0 OTS 214751 Series |
| Jacket Colour |
Black |
| No. of Positions |
2Ways |
| No. of Rows |
1 Row |
| Cable Length - Imperial |
23.6" |
| Wire Gauge |
18AWG |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
