Product Overview

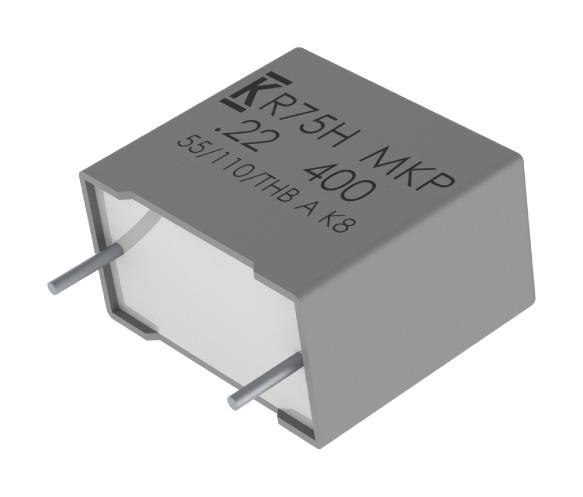

R75H series are single metallized polypropylene film radial capacitors for DC and pulse applications. Capacitors are constructed of metallized polypropylene film with radial leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material meeting UL 94 V–0 requirements. Two different winding constructions are used depending on voltage parameters and lead spacing. Typical applications include resonant circuit, high frequency medium to height current, silicon-controlled rectifier (SCR and IGBT) and SiC (MOSFET) commutation circuits as well as applications with high voltage and medium to high current in combination with high temperature and DC link.
- Automotive (AEC–Q200) grade qualified
- Polypropylene pulse/high frequency capacitors
- Climatic category: 55/110/56 IEC 60068–1
- Usable in harsh environment
- Self-healing properties
- Not suitable for across-the-line applications
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
1.8µF |
| Typical Applications |
High Frequency |
| Voltage(AC) |
250V |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
27.5mm |
| Peak Current |
324A |
| ESR |
8800µohm |
| Product Length |
32mm |
| Product Height |
33mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
630V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
180V/µs |
| RMS Current (Irms) |
9.93A |
| Product Diameter |
- |
| Product Width |
18mm |
| Ripple Current |
- |
| Product Range |
R75H Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
R75PR418050H3J |
| Quantity |
Each |
| Product Change Notice (267.37KB) EN |
View or download |
