Product Overview
B32933 series is a X2 heavy duty series EMI suppression capacitor (MKT) with rated AC voltage of 305V. Suitable for connection in Series with the mains, for severe ambient conditions, capacitive power supply applications and energy meters.
- 22.5mm lead spacing and 0.8mm lead diameter
- AEC-Q200D compliant
- High stability of capacitance value
- Metallized polyester dielectric
- Internal series connection
- Plastic case (UL 94 V-0)
- Epoxy resin sealing, flame-retardant
- Parallel wire leads, lead-free tinned
- Maximum operating temperature of 105°C
- Climatic category (IEC 60068-1:2013): 40/105/56
Product details
| Dielectric Type |
Metallized PET |
| Capacitance |
0.56µF |
| Suppression Class |
X2 |
| Voltage Rating X |
305VAC |
| dv/dt Rating |
50V/µs |
| Lead Spacing |
22.5mm |
| Operating Temperature Max |
105°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage Rating Y |
- |
| Humidity Rating |
GRADE III (Test Condition B) |
| Operating Temperature Min |
-40°C |
| Product Range |
B32933 Series |
| SVHC |
No SVHC (25-Jun-2025) |
Other details

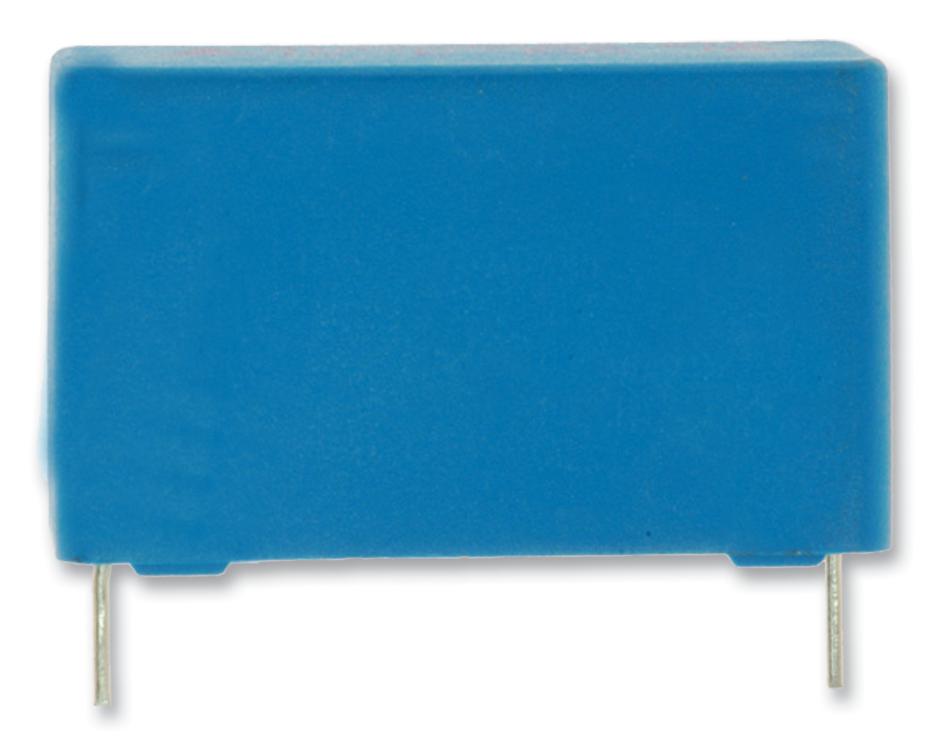

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
