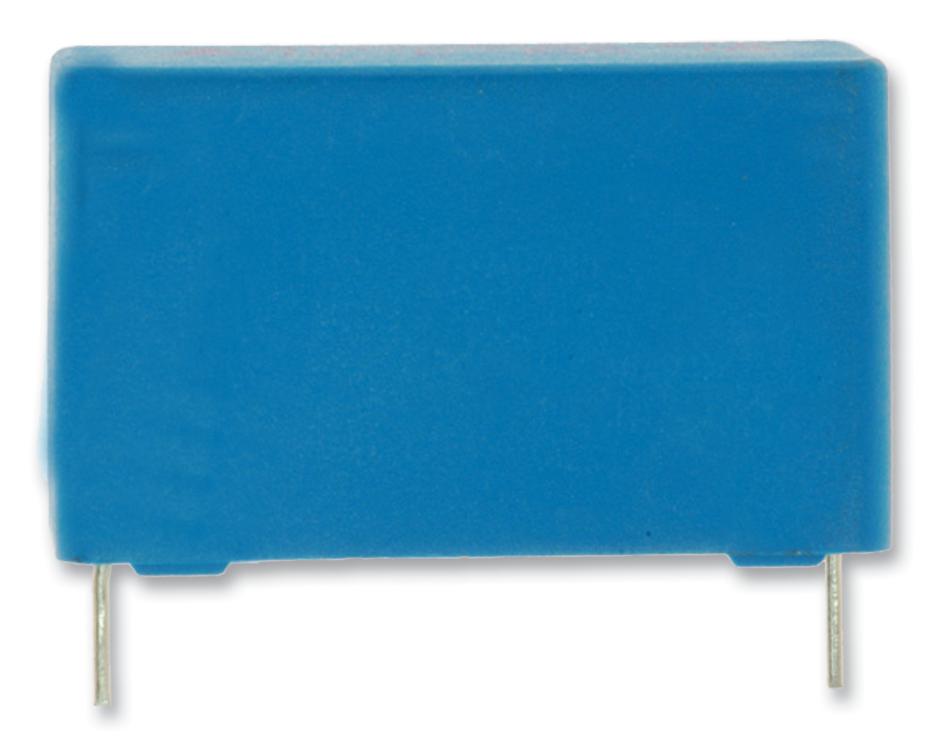

Product Overview
Also known as
B32683A1223J
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.022µF |
| Typical Applications |
Snubber |
| Voltage(AC) |
500V |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
22.5mm |
| Peak Current |
- |
| ESR |
- |
| Product Length |
26.5mm |
| Product Height |
18.5mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
1.6kV |
| Capacitor Terminals |
PC Pin |
| dv/dt Rating |
17kV/µs |
| RMS Current (Irms) |
- |
| Product Diameter |
- |
| Product Width |
10.5mm |
| Ripple Current |
- |
| Product Range |
B32683 Series |
| Operating Temperature Max |
110°C |
| SVHC |
No SVHC (25-Jun-2025) |
