Product Overview

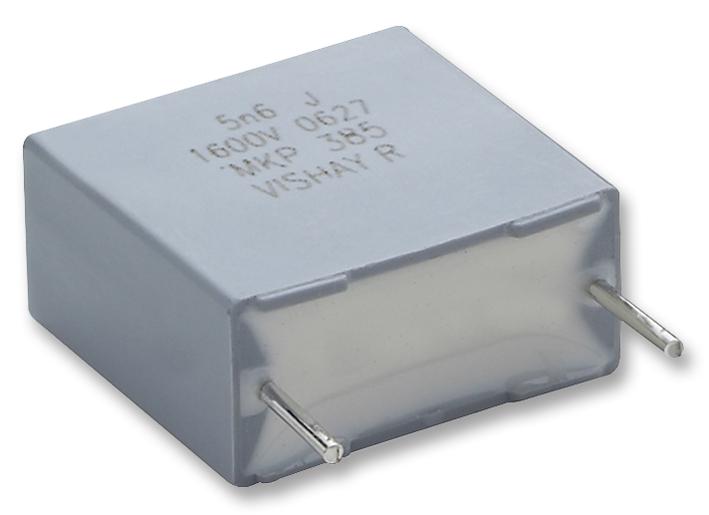

MKP385 is a radial potted type AC and pulse metallized polypropylene film capacitor. It is used where steep pulses occur e.g. SMPS (switch mode power supplies), electronic lighting e.g. ballast, motor control circuits, high frequency and pulse operations, deflection circuits in TV-sets (S-correction), loudspeaker crossover networks, storage, filter, timing and sample and hold circuits.
- Low contact resistance
- Low loss dielectric
- Small dimensions for high density packaging
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.012µF |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
250V |
| Capacitor Terminals |
PC Pin |
| Product Length |
7.2mm |
| Product Height |
8mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Voltage(AC) |
160V |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
5mm |
| Product Width |
3.5mm |
| Product Range |
MKP385 Series |
| Operating Temperature Max |
110°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
VISHAY |
| Part Number |
MKP385312025JBA2B0 |
| Quantity |
Each |
| Product Change Notice (75.07KB) EN |
View or download |
| Technical Data Sheet (133.00B) EN |
View or download |
