Product Overview

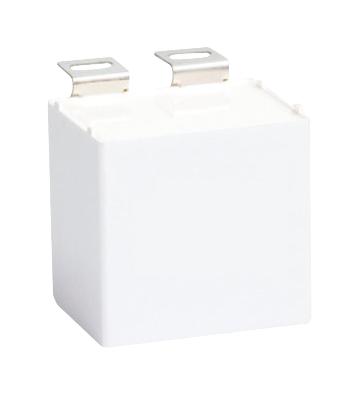

MULTICOMP PRO MP004149 IGBT Snubber Capacitor, 0.47 µF, 1.5 kV, ± 10%, Screw Mount
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.47µF |
| Typical Applications |
Snubber |
| Voltage(AC) |
630V |
| Humidity Rating |
- |
| Lead Spacing |
23.5mm |
| Peak Current |
658A |
| ESR |
3500µohm |
| Product Length |
42mm |
| Product Height |
36mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - Tabs |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Screw Mount |
| Voltage(DC) |
1.5kV |
| Capacitor Terminals |
Solder |
| dv/dt Rating |
1.4kV/µs |
| RMS Current (Irms) |
21.1A |
| Product Diameter |
- |
| Product Width |
20mm |
| Ripple Current |
- |
| Product Range |
MP SI Series |
| Operating Temperature Max |
85°C |
| SVHC |
To Be Advised |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP004149 |
| Quantity |
Each |
| Technical Data Sheet (592.22KB) EN |
View or download |
