Product Overview

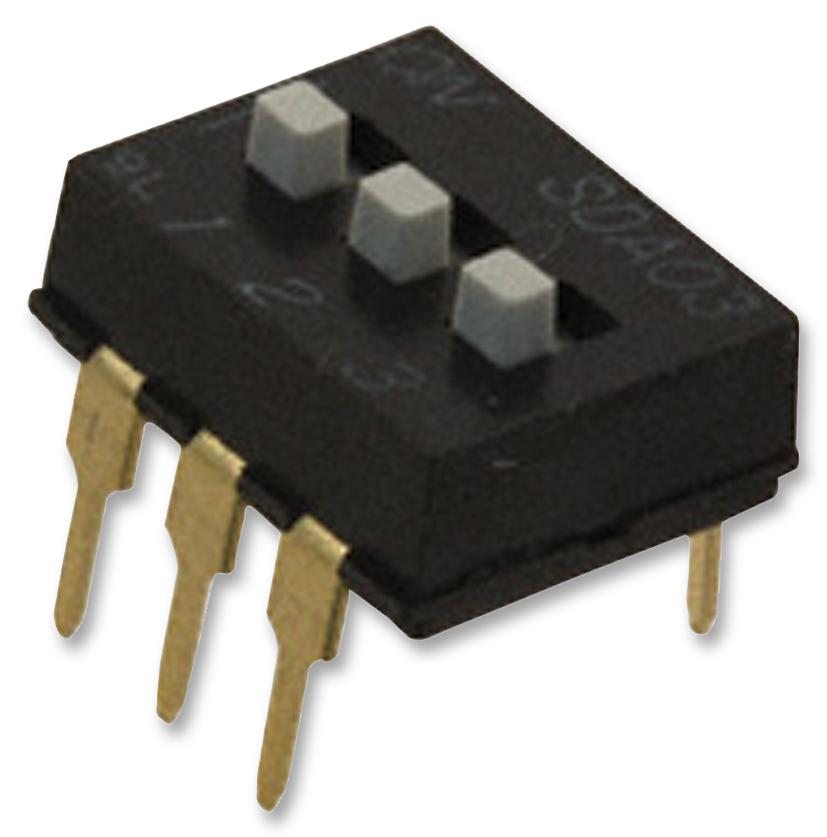

A6TN-3104 is a through-hole mounting slide DIP switch with high contact reliability.
- Knife-edge structure with high contact pressure mechanism assures high reliability
- 3-pole, raised actuator, 200mohm max contact resistance (initial value)
- 25mA at 24VDC, 10μA (minimum current) at 3.5VDC rating (resistive load)
- 100Mohm min. (at 100VDC with insulation tester) insulation resistance
- 300VAC for 1min between terminals (dielectric strength)
- Electrical: 1,000 operations min durability
- IEC IP40 degree of protection
- 0.98 to 7.9N {100 to 806gf} operating force
- Ambient operating temperature range from -30 to +85°C at 60% max. (with no icing or condensation)
Product details
| No. of Circuits |
3Circuits |
| Switch Mounting |
Through Hole |
| Contact Voltage DC Max |
24V |
| Switch Type |
DIP Unsealed |
| Switch Actuator Style |
Slide |
| Contact Configuration |
SPST |
| Contact Current DC Max |
25mA |
