Product Overview

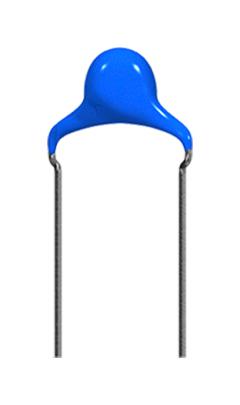

CK45 series is a disc type capacitor with leads used for general purpose applications such as DC ballast.
- High voltage ceramic capacitor
- Commercial grade
- Compatible with halogen-free external resin coating
Product details
| Capacitance |
4700pF |
| Capacitance Tolerance |
-20%, +80% |
| Lead Spacing |
7.5mm |
| Product Range |
CK45 Series |
| Operating Temperature Max |
105°C |
| Voltage(DC) |
3kV |
| Dielectric Characteristic |
E |
| Capacitor Terminals |
Radial Leaded |
| Operating Temperature Min |
-25°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TDK |
| Part Number |
CK45-E3FD472ZYNNA |
| Quantity |
Each |
| Technical Data Sheet (170.58KB) EN |
View or download |
