Product Overview

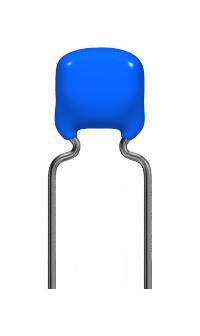

FG20X7R1C226MRT06 is a FG series MLCC with dipped radial lead (halogen-free, commercial grade). Typical applications include noise reduction measures for various motors, bypass capacitors and smoothing capacitors for switching power sources, snubber circuits and PFC input filters.
- PCB deflection countermeasure
- Acoustic noise countermeasure
- Capacitance value is 22µF with ±20% tolerance
- X7R dielectric
- 16VDC rated voltage
- Lead spacing is 5mm
- Operating temperature range from -55 to 125°C
Product details
| Capacitance |
22µF |
| Capacitance Tolerance |
± 20% |
| Dielectric Characteristic |
X7R |
| Capacitor Case / Package |
Radial Leaded |
| Product Diameter |
- |
| Product Width |
4mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Voltage(DC) |
16V |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
5mm |
| Product Range |
FG Series |
| Product Length |
5.5mm |
| Product Height |
7mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TDK |
| Part Number |
FG20X7R1C226MRT06 |
| Quantity |
Each |
| Technical Data Sheet (705.69KB) EN |
View or download |
