Product Overview

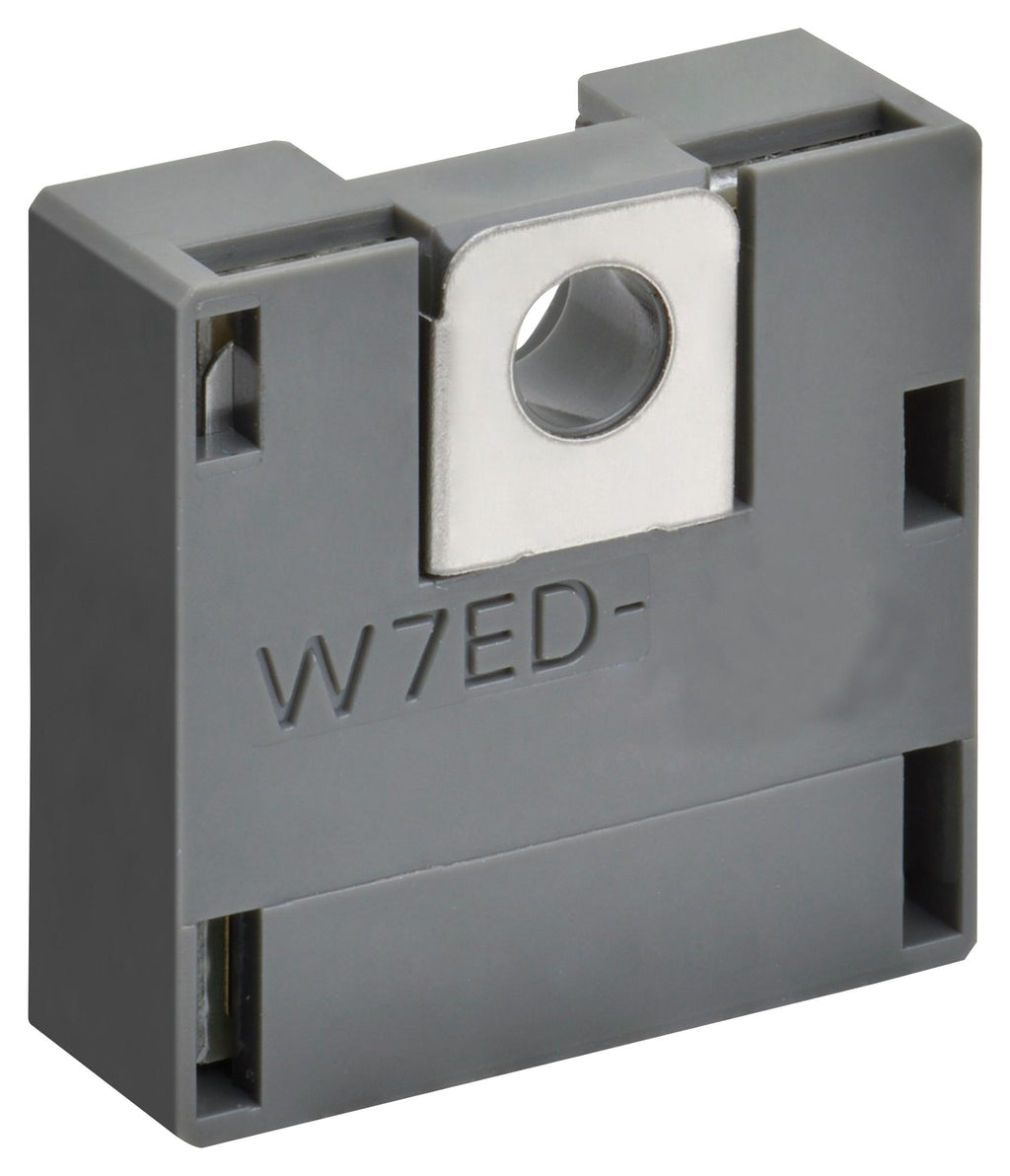

W7ED-12F is a touch sensor. It features reliable operation that requires only a light touch. It is suitable for embedding in equipment. This device enables touch sensor configurations to be created that suit your application. Touch electrodes and touch sensor electrodes can be fastened just using screws. The body-to-electrode static electricity transfers can easily be prevented using FG terminal models. It is used in applications such as lights, elevators, vending machines, faucets.
- 25pF detected capacitance, with FG terminal
- I-shaped electrode, 5VDC (-10%) to 15VDC (+10%) power supply voltage
- 10mA maximum current consumption
- Reliable operation, connects easily, no design required
- Ambient temperature range from -10 to 60°C (when in use, no icing or condensation)
Product details
| Sensor Type |
Capacitive Touch Sensor |
| Supply Voltage DC Min |
5V |
| Sensor Output Type |
Open Collector |
| Supply Voltage DC Max |
15V |
| No. of Pins |
- |
| Operating Temperature Max |
60°C |
| Product Range |
W7ED Series |
| No. of Channels |
- |
| Supply Voltage Min |
5V |
| Supply Voltage Max |
15V |
| Sensor Case / Package |
- |
| Operating Temperature Min |
-10°C |
| Qualification |
- |
| SVHC |
To Be Advised |
