Description
Product Overview

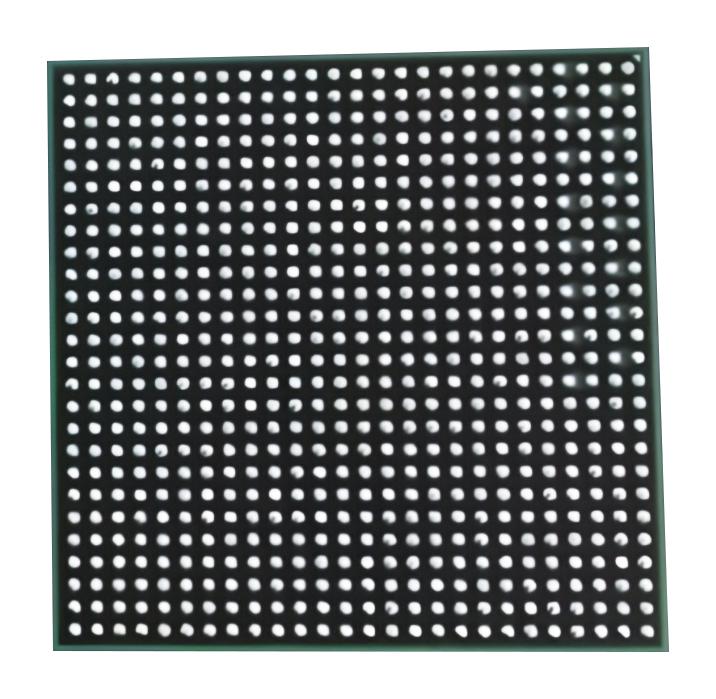

XC7A12T-1CPG238C is an Artix®-7 FPGA IC. The Artix®-7 FPGA IC is optimized for low-power applications that demand serial transceivers, high DSP performance, and logic throughput. It offers the lowest total bill of materials cost, making it ideal for high-throughput, cost-sensitive system designs.
- Built on 28nm high-performance, low-power (HPL) process using high-k metal gate (HKMG) technology
- Advanced FPGA logic using 6-input LUTs, configurable as distributed memory for high performance
- 36KB dual-port block RAM with built-in FIFO logic for on-chip data buffering
- Powerful CMTs with PLL and MMCM blocks enable precise, low-jitter, flexible clock management
- 12800 logic cells, 112 I/O's
- Dual 12bit XADC with on-chip thermal and supply sensors
- 256-bit AES encryption with HMAC/SHA-256 and built-in SEU detection and correction
- I/O voltage range from 1.2V to 3.3V
- Available in 238 pin CSBGA package
- Operating temperature range from 0°C to 85°C
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Notes
Please note this product is Non-Cancellable and Non-Returnable (NCNR). Warranty Information: Xilinx semiconductor products have a warranty of twelve (12) months from date of purchase.
Product details
| FPGA Type | SRAM based FPGA |
| IC Case / Package | CSBGA |
| Speed Grade | 1 |
| Process Technology | 28nm (HKMG) |
| Operating Temperature Min | 0°C |
| Product Range | Artix-7 XC7A12T |
| SVHC | No SVHC (15-Jan-2018) |
| Core Supply Voltage Max | 1.05V |
| FPGA Family | Artix-7 |
| Logic Case Style | CSBGA |
| No. of Logic Blocks | 12800 |
| No. of Speed Grades | 1 |
| Total RAM Bits | 720Kbit |
| No. of Logic Cells | 12800Logic Cells |
| No. of Pins | 238Pins |
| No.of User I/Os | 112I/O's |
| IC Mounting | Surface Mount |
| Operating Temperature Max | 85°C |
| Qualification | - |
| Clock Management | MMCM, PLL |
| Core Supply Voltage Min | 950mV |
| I/O Supply Voltage | 3.3V |
| No. of I/O's | 112I/O's |
| No. of Macrocells | 12800Macrocells |
| Operating Frequency Max | 464MHz |
Other details
| Brand | AMD |
| Part Number | XC7A12T-1CPG238C |
| Quantity | Each |
| Enhanced Product Overview (446.11KB) EN | View or download |
| Technical Data Sheet (732.23KB) EN | View or download |
