| ₹ 11889.86 includes GST and import duties. | |
| B2B customers can avail ₹ 1813.2 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

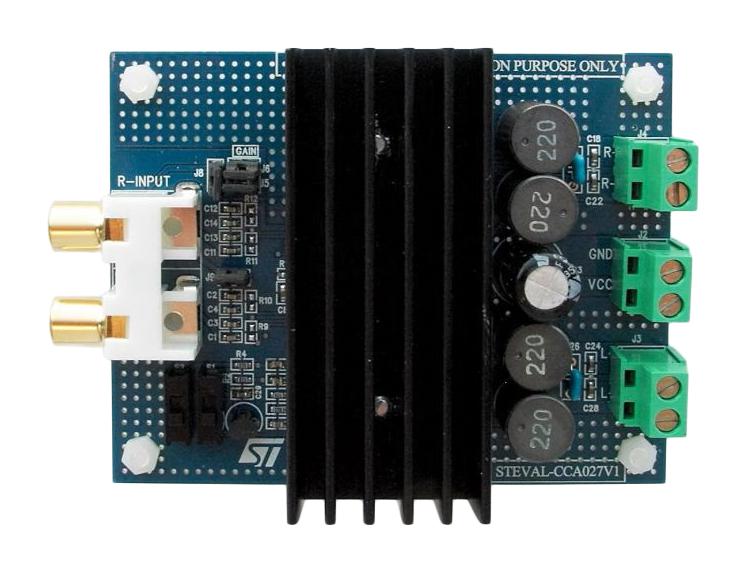

STEVAL-CCA027V1 demonstration board is designed for the TDA7492 high power dual BTL class-D audio amplifier. Due to the high efficiency, the TDA7492 device is assembled in PSSO36 and is able to dissipate the generated heating with the use of a reasonably small heatsink. On the board some jumpers allow to configure the amplifier in order to verify all the features, such as single ended or differential inputs, fixed gain settings. Standby and mute functions are enabled through the microswitches provided.
- 50W + 50W continuous output power at 10% THD , 6ohm RI, 25Vcc
- 40W + 40W continuous output power at 10% THD, 8ohm RI, 25Vcc
- Wide range single supply operation
- High efficiency
- Four selectable, fixed gain settings (21.6dB, 27.6dB, 31. dB, and 33.6dB)
- Differential inputs to minimize common mode noise
- Standby and Mute features
- Short circuit and thermal overload protections
- Externally synchronizable
Applications
Audio
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer | STMicroelectronics |
| Kit Application Type | Audio |
| Kit Contents | Demonstration Board TDA7492 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | TDA7492 |
| Application Sub Type | Audio Power Amplifier - Class D |
| Product Range | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STEVAL-CCA027V1 |
| Quantity | Each |
| Technical Data Sheet (93.71KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11652.06 |
| 3-5 | ₹ 11533.16 |
| 5-10 | ₹ 11295.37 |
| 10+ | ₹ 11057.57 |
Bulk discount will be automatically applied during checkout based on quantity.
