Product Overview

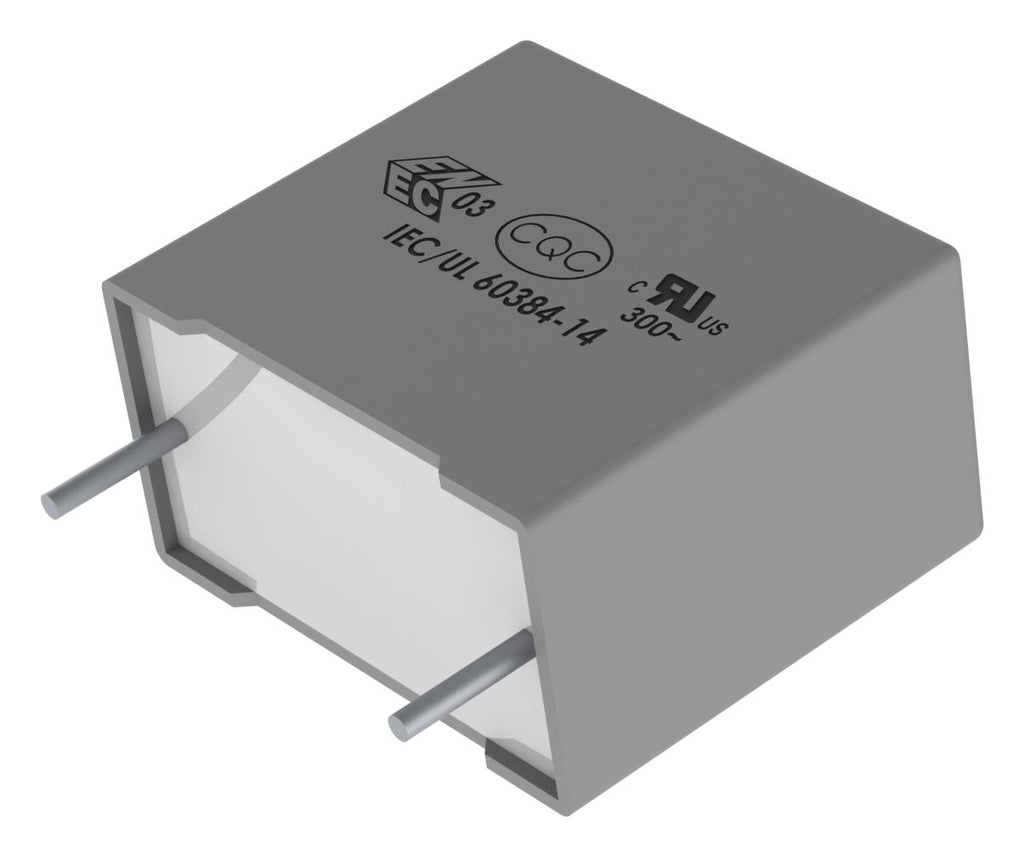

R41T series are Class Y2, 300VAC, 125°C metallized polypropylene film EMI suppression capacitors. Capacitors are constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL94 V–0. Suitable for use in electromagnetic interference (EMI) suppression filter in line-to-ground and across-the-line applications requiring Y2/X1 safety classification. Also suitable for use in situations where failure of the capacitor could lead to danger of electric shock.
- Automotive (AEC–Q200) grade qualified
- ENEC, UL, cUL, CQC approvals
- Class Y2/X1 (IEC 60384-14)
- THB grade IIIB (85°C, 85% RH, 1000 hours at 300V URAC/1500V URDC according to IEC 60384-14)
- Climatic category 40/110/56, IEC 60068-1
- Self-healing properties
- Not for use in series with mains type applications
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
0.15µF |
| Suppression Class |
Y2 |
| Voltage Rating X |
- |
| dv/dt Rating |
500V/µs |
| Lead Spacing |
22.5mm |
| Operating Temperature Max |
125°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage Rating Y |
300VAC |
| Humidity Rating |
GRADE III (Test Condition B) |
| Operating Temperature Min |
-40°C |
| Product Range |
R41T Series |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
R413N315050T0K |
| Quantity |
Each |
| Product Change Notice (267.37KB) EN |
View or download |
