Product Overview

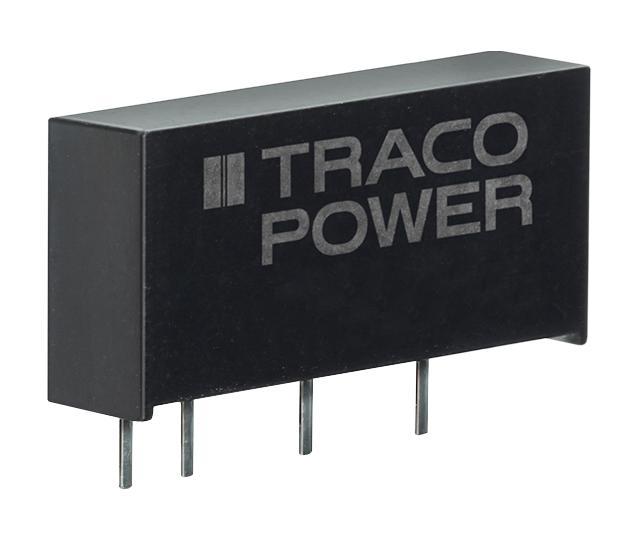

TRACO POWER TBA 1-2412E Isolated Through Hole DC/DC Converter, ITE, SIP, 1:1, 1 W, 1 Output, 12 V
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
1:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
84mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10mm |
| Input Voltage DC Min |
21.6V |
| Product Range |
TBA 1E Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
24V |
| Width |
6mm |
| Depth |
19.5mm |
| Input Voltage DC Max |
26.4V |
Other details
| Brand |
TRACO POWER |
| Part Number |
TBA 1-2412E |
| Quantity |
Each |
| Technical Data Sheet (900.69KB) EN |
View or download |
