Product Overview

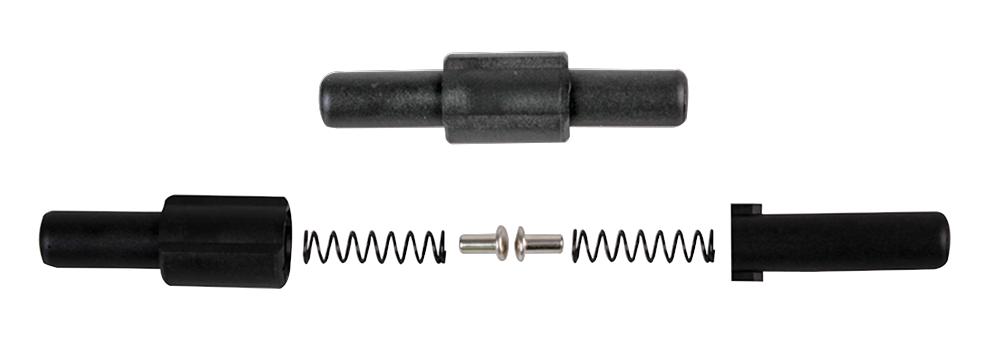

The CFH10 from CamdenBoss is an inline fuseholder, this accepts 5 x 20mm, 6.3 x 32mm and 6.3 x 25mm fuses.
- Inline type fuseholder
- Rated: 6.3A at 250V AC
- Accepts the following size of fuses:- 5 x 20mm, 6.3 x 25mm and 6.3 x 32mm
- Internal solder cup termination
- Tinned nickel plated brass contacts
- Dielectric strength: 1.5kV
- Operating power: 1.6W
- Insulation resistance: <gt/>10MΩ
- Operating temperature: -30°C to +85°C
- Allows choice of wire
- Bayonet type cover
- UL94-HB Approval
Product details
| Fuse Holder Type |
Cartridge In Line Fuse Holder |
| Fuse Size Held |
5mm x 20mm, 6.3mm x 25mm, 6.3mm x 32mm |
| No. of Fuses |
1Fuses |
| Voltage Rating VAC |
250V |
| SVHC |
No SVHC (21-Jan-2025) |
| Fuse Current |
6.3A |
| Holder Terminals |
Solder |
| Product Range |
- |
| Voltage Rating VDC |
250V |
Other details
| Brand |
CAMDENBOSS |
| Part Number |
CFH10 |
| Quantity |
Each |
| Technical Data Sheet (366.45KB) EN |
View or download |
