Product Overview

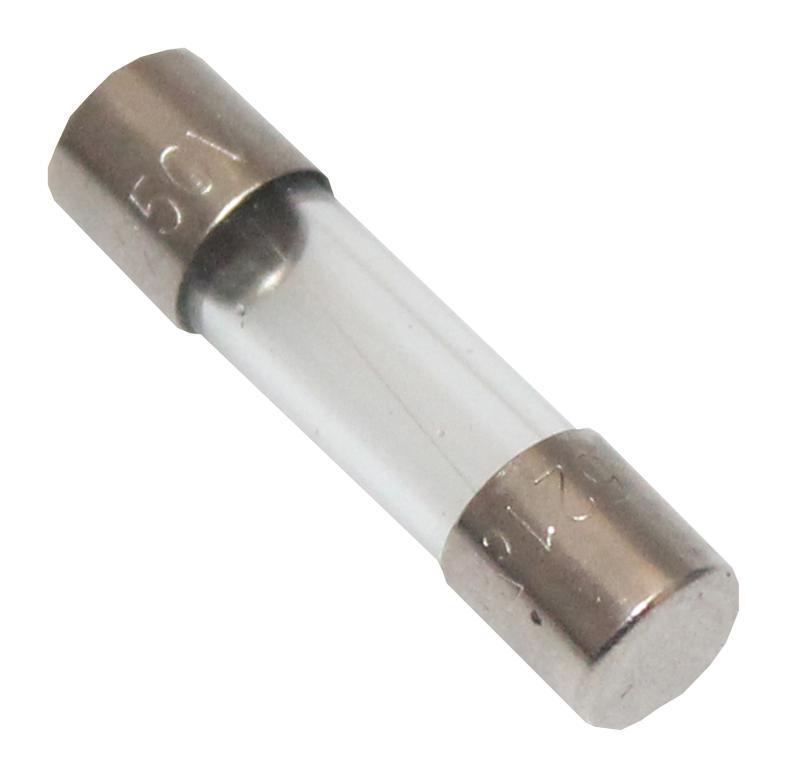

The CamdenBoss CFB0520T/1 is a time-delay glass cartridge fuse designed for circuit protection in electronic and electrical equipment. It provides reliable overcurrent protection while allowing short-duration surges without blowing, making it ideal for inductive loads and sensitive circuits.
- Suitable for Power supplies, control circuits, and equipment requiring surge tolerance
- Blow Characteristic: Time Delay (Slow Blow)
- Rated Current: 1A
- Voltage Rating: 250V AC
- Breaking Capacity: 100A at 250V AC
- Fuse Size: 5mm x 20mm
- Material: Glass body with nickel-plated brass end caps
- Operating Temperature: -55°C to +125°C
Product details
| Blow Characteristic |
Time Delay |
| Voltage Rating VAC |
250V |
| Fuse Size Imperial |
0.2" x 0.79" |
| Breaking Capacity Current AC |
100A |
| Fuse Current |
1A |
| Fuse Size Metric |
5mm x 20mm |
| Product Range |
- |
| SVHC |
Lead (21-Jan-2025) |
Other details
| Brand |
CAMDENBOSS |
| Part Number |
CFB0520T/1 |
| Quantity |
Each |
| Technical Data Sheet (1.91MB) EN |
View or download |
