Product Overview
FS series A Type aluminium electrolytic capacitors features extreme high capacitance, long life, and low ESR—all wrapped in significantly smaller case sizes. The FS series provides space reduction and allows for a reduced number of capacitors on the board. Low ESR and high ripple current in the FS series combines to provide a more stable, long-life capacitor option.
- Smaller case size, miniaturized: one size smaller than EEU-FR series
- Operating temperature range from -40°C to +105°C
- Suitable for the high reliability application such as an industrial instrument
Product details
| Capacitance |
10000µF |
| Capacitance Tolerance |
± 20% |
| Lifetime @ Temperature |
10000 hours @ 105°C |
| Capacitor Case / Package |
Radial Leaded |
| Product Diameter |
16mm |
| Product Width |
- |
| Product Range |
FS Series |
| Ripple Current |
3.82A |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Voltage(DC) |
6.3V |
| Capacitor Terminals |
Radial Leaded |
| Polarity |
Polar |
| Lead Spacing |
7.5mm |
| Product Length |
- |
| Product Height |
25mm |
| ESR |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details

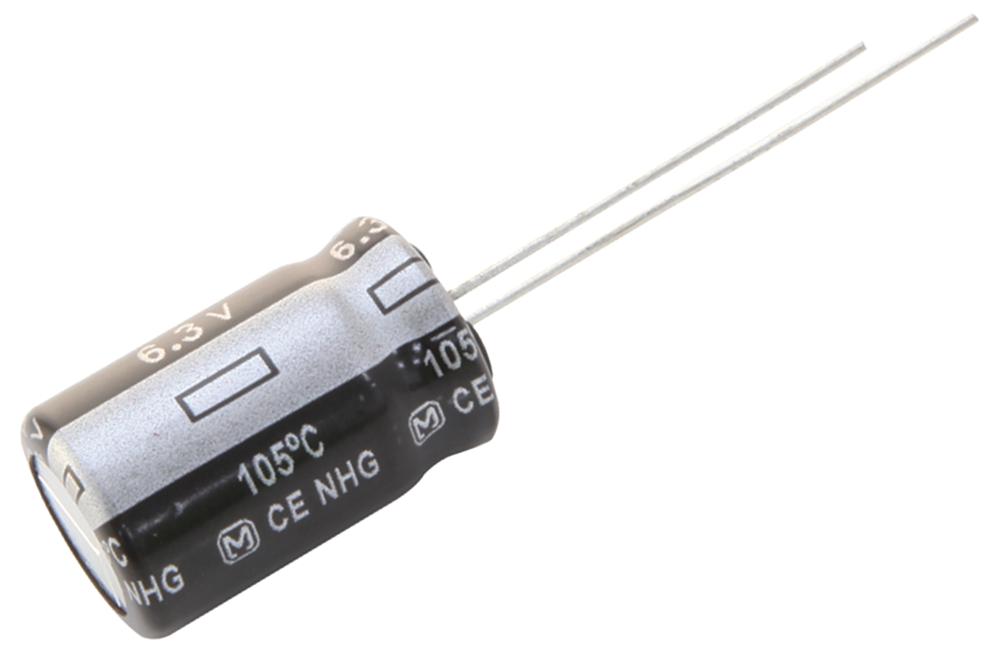

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
