Product Overview

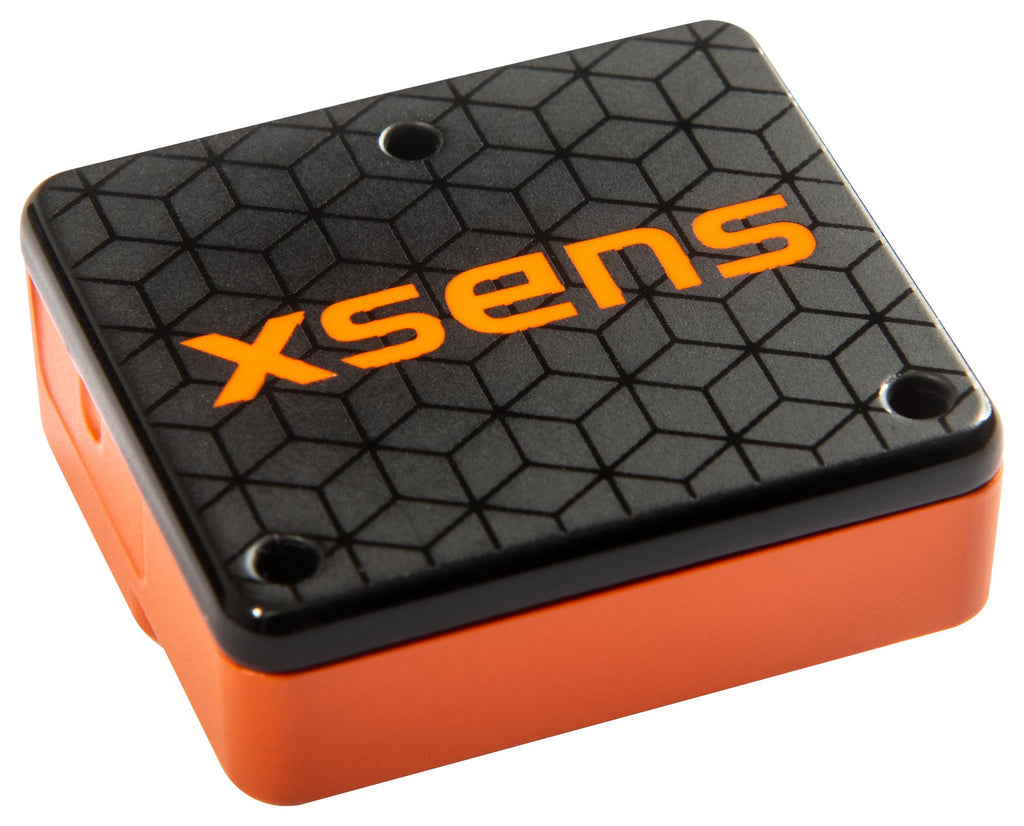

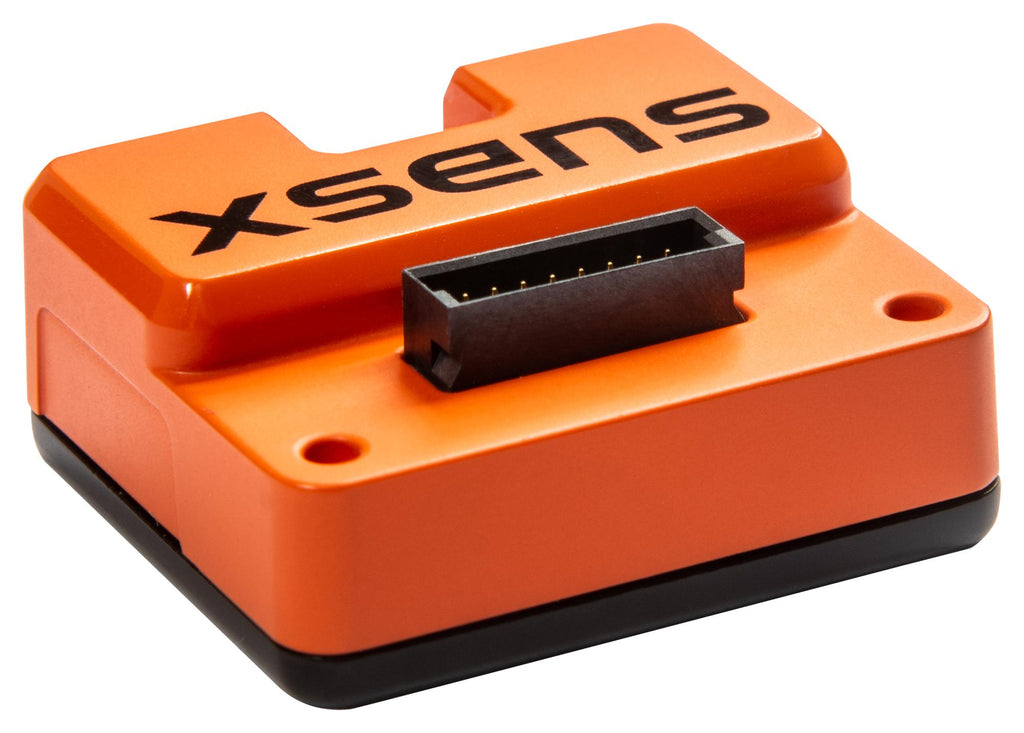

- MTi-600 series industrial grade MEMS-based orientation sensors
- Attitude and Heading Reference System (AHRS) integration level
- Full-featured sensor fusion algorithm with easy to use SDK
- Native CAN/RS232/UART interfaces, external GNSS receiver support and NMEA compatibility
- Small form factor with flexible mounting options
- Extended kalman filtering (XKF3 core) with various application scenarios
- Address small to large robotics, unmanned system innovators in subsea/sea/surface/land/air domains
- Fully supported by Xsens free MT software suite
- IP 51 rated
- ITAR (International Traffic in Arms Regulations) free
Product details
| Sensor Type |
Accelerometer, Gyroscope, Magnetometer |
| Sensing Axis |
X, Y, Z |
| Sensor Case Style |
Module |
| Sensor Case / Package |
Module |
| Sensing Range - Accelerometer |
± 10g |
| Temperature Sensing Range |
- |
| Operating Temperature Min |
-40°C |
| Product Range |
MTi-600 Series |
| MEMS Module Function |
Tri-Axis Gyroscope, Tri-Axis Accelerometer, Tri-Axis Magnetometer |
| Supply Voltage Min |
4.5V |
| Supply Voltage Max |
24V |
| No. of Pins |
- |
| Sensing Range - Gyroscope |
± 2000°/s |
| Output Interface |
CAN, RS232, UART |
| Operating Temperature Max |
85°C |
