Product Overview

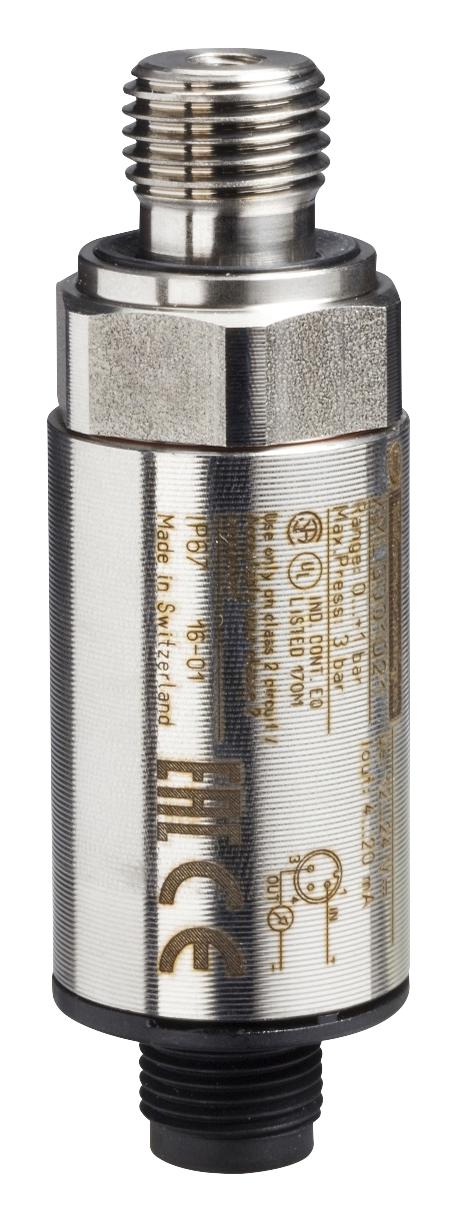

TELEMECANIQUE SENSORS XMLG400D21 Pressure Transmitter, BSPP Male, 0 bar, 400 bar, G1/4A, 3 Pin M12 Connector
Product details
| Pressure Type |
- |
| Pressure Port Type |
BSPP Male |
| Pressure Measurement Type |
Differential |
| Operating Pressure Max |
400bar |
| Pressure Port Size |
G1/4A |
| Transducer Connection / Termination |
3 Pin M12 Connector |
| Supply Voltage Max |
33VDC |
| Output Interface |
- |
| Housing Material |
303 Stainless Steel |
| Operating Temperature Max |
85°C |
| SVHC |
To Be Advised |
| Sensor Output Type |
Analogue |
| Operating Pressure Min |
0bar |
| Voltage Rating |
24VDC |
| Port Style |
G1/4 |
| Supply Current |
20mA |
| Supply Voltage Min |
0 |
| Media Type |
Air, Corrosive Fluid, Fresh Water, Hydraulic Oil |
| Operating Temperature Min |
-15°C |
| Product Range |
OsiSense XMLG Series |
