Product Overview

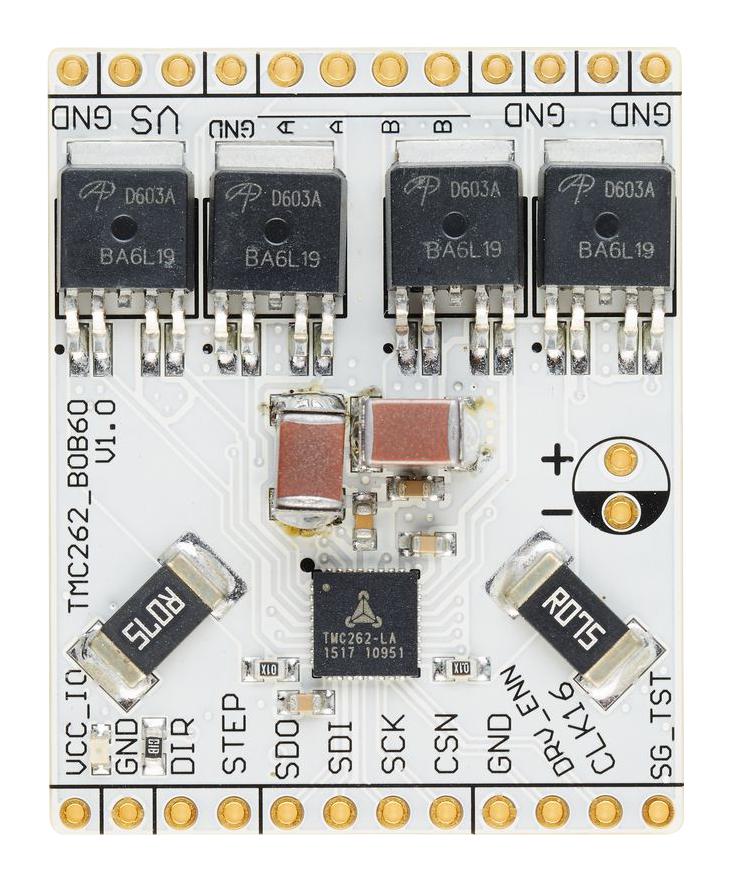

- TMC262 breakout board is a development board with the dedicated TMC262-LA chip
- TMC262-LA stepper predriver and 60V power stage
- StallGuard2™ high-precision load measurement using the back EMF on the coils
- CoolStep™ load-adaptive current control which reduces energy consumption by as much as 75%
- SpreadCycle™ high precision chopper algorithm
- Supply voltage range from 9V to 48V (60V limit with the on-board FETs) and RMS current of 2.8A
- Configure via SPI, control via step/direction
- Greater than 24V use with optional low ESR ELCO, capacitor 150uF
- Board width is 1.5", board height is 1.2"
- 2x12 pin 0.1" header rows for pins/connectors
Product details
| Accessory Type |
Stepper Driver Breakout Board |
| Product Range |
- |
| For Use With |
Trinamic TMC262-LA 60V Stepper Predriver |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TRINAMIC / ANALOG DEVICES |
| Part Number |
TMC262-BOB60 |
| Quantity |
Each |
| Technical Data Sheet (1.80MB) EN |
View or download |
