Description
Product Overview

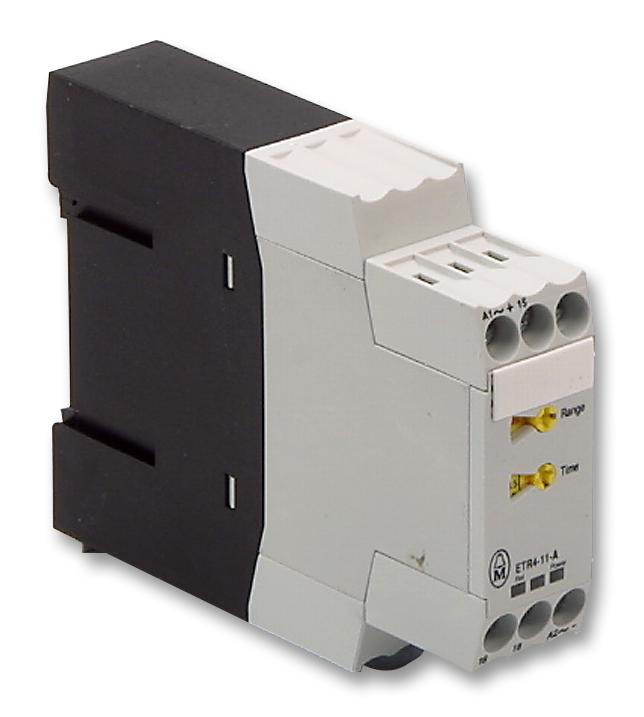

The ETR4-11-A from Eaton Moeller is ETR4 series analogue on-delay electronic timing relay. These timers are used in contactor control systems which require short rest times, high repetition accuracy, high switching frequency and long component life span.
- On-delay timing function
- 10 range of time selection between 0.05s to 100h
- Operating voltage is 24VAC to 240VAC / 24VDC to 240VDC
- Rated operational current is 3A
- DIN rail mountable
- UL, CSA approved
- IP20 degree of protection
- 1 changeover relay
Applications
Clock & Timing
Product details
| Product Range | ETR4 |
| Time Min | 0.05s |
| No. of Timing Ranges | 10Ranges |
| Supply Voltage Max | 240V |
| Connection / Termination | Screw Terminals |
| Timer Functions | On-Delay |
| Time Max | 100h |
| Timer Output | 1 Changeover Relay |
| Current Rating Nom | 3A |
| SVHC | No SVHC (17-Dec-2015) |
Other details
| Brand | EATON MOELLER |
| Part Number | ETR4-11-A |
| Quantity | Each |
| Technical Data Sheet (2.62MB) EN | View or download |
| Operating Instructions (202.11KB) EN | View or download |
