Product Overview

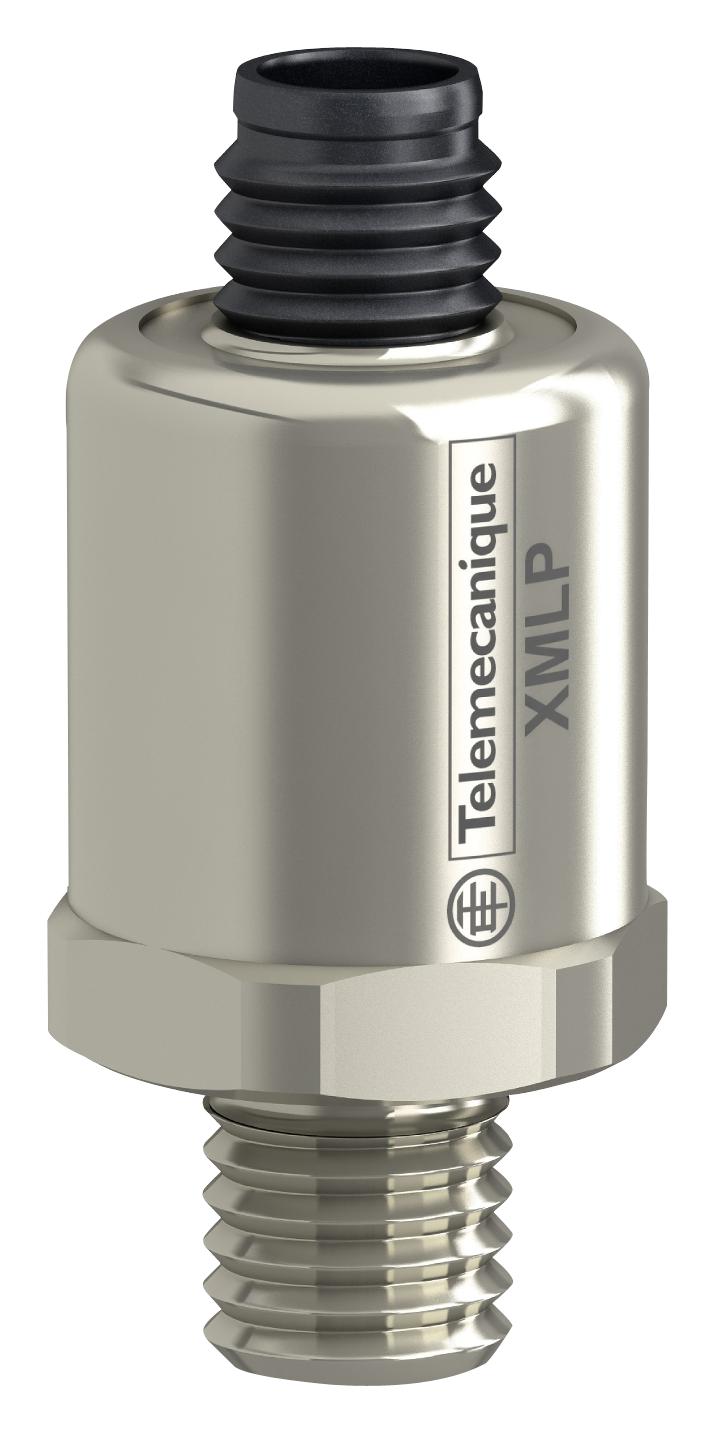

TELEMECANIQUE SENSORS XMLP100PD230 Pressure Transmitter, NPT Male, 0 psi, 100 psi, 1/4"-18, 4 Pin M12 Connector
Product details
| Pressure Type |
- |
| Sensor Output Type |
Analogue |
| Voltage Rating |
24VDC |
| Port Style |
1/4" - 18 NPT |
| Supply Current |
23mA |
| Supply Voltage Min |
7VDC |
| Media Type |
Air, Fresh Water, Gas, Hydraulic Oil, Refrigeration Fluid |
| Operating Temperature Min |
-30°C |
| Product Range |
OsiSense XMLP Series |
| Pressure Port Type |
NPT Male |
| Operating Pressure Min |
0psi |
| Operating Pressure Max |
100psi |
| Pressure Port Size |
1/4"-18 |
| Transducer Connection / Termination |
4 Pin M12 Connector |
| Supply Voltage Max |
33VDC |
| Output Interface |
- |
| Housing Material |
316L Stainless Steel |
| Operating Temperature Max |
85°C |
| SVHC |
To Be Advised |
