Product Overview

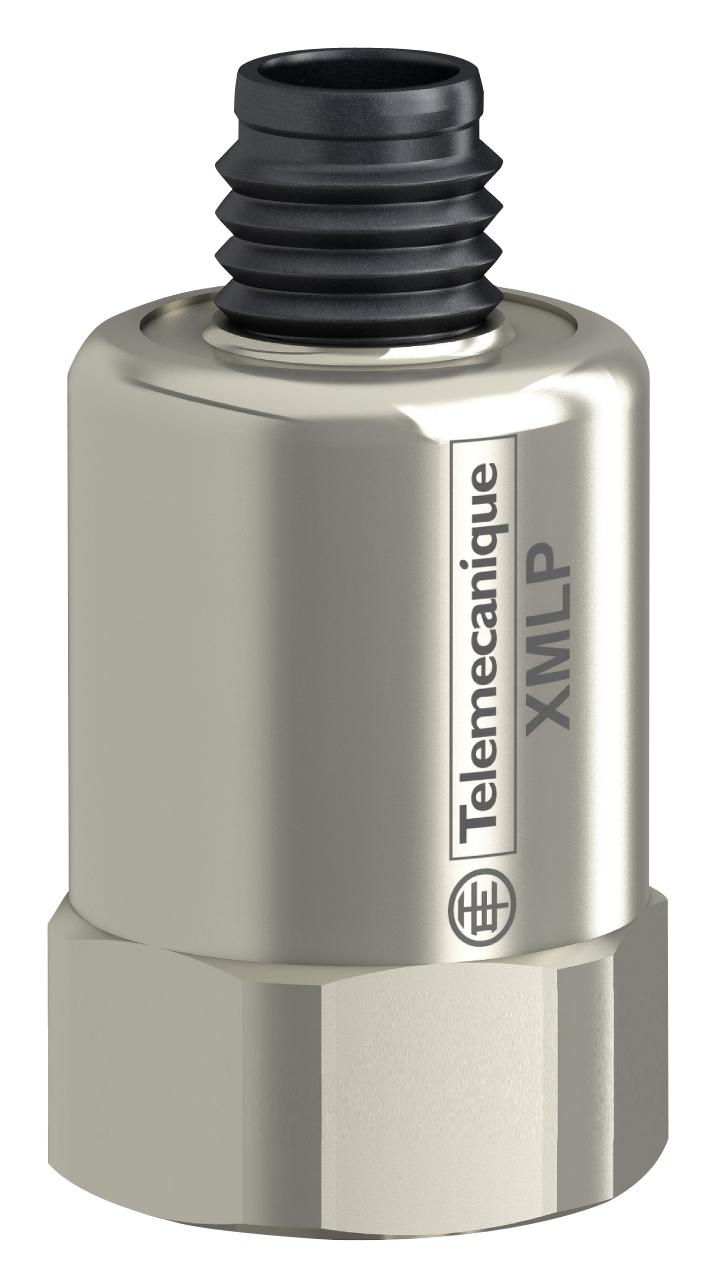

TELEMECANIQUE SENSORS XMLP016BD290 Pressure Transmitter, UNF-2B Female, 0 bar, 16 bar, 7/16"-20, 4 Pin M12 Connector
Product details
| Pressure Type |
- |
| Pressure Port Type |
UNF-2B Female |
| Voltage Rating |
24VDC |
| Port Style |
7/16" - 20 UNF |
| Supply Current |
23mA |
| Supply Voltage Min |
7VDC |
| Media Type |
Air, Fresh Water, Gas, Hydraulic Oil, Refrigeration Fluid |
| Sensor Output Type |
Analogue |
| Operating Temperature Min |
-30°C |
| Product Range |
OsiSense XMLP Series |
| Operating Pressure Min |
0bar |
| Operating Pressure Max |
16bar |
| Pressure Port Size |
7/16"-20 |
| Transducer Connection / Termination |
4 Pin M12 Connector |
| Supply Voltage Max |
33VDC |
| Output Interface |
- |
| Housing Material |
303 Stainless Steel |
| Operating Temperature Max |
85°C |
| SVHC |
To Be Advised |
Other details
| Brand |
TELEMECANIQUE SENSORS |
| Part Number |
XMLP016BD290 |
| Quantity |
Each |
| Technical Data Sheet (101.37KB) EN |
View or download |
