Description
Product Overview
The LM555CN/NOPB is a highly stable 555 Timer for generating accurate time delays and oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and duty cycle are accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms and the output circuit can source or sink up to 200mA or drive TTL circuits.
- Direct replacement for SE555/NE555
- Timing from microseconds through hours
- Operates in both astable and monostable modes
- Adjustable duty cycle
- Output and supply TTL compatible
- 0.005%/°C Temperature stability
- Normally on and normally off output
- Green product and no Sb/Br
Applications
Clock & Timing
Warnings
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Product details
| Frequency | 10MHz |
| Supply Voltage Max | 16V |
| Digital IC Case | DIP |
| Product Range | 555 timer |
| Operating Temperature Max | 70°C |
| SVHC | No SVHC (27-Jun-2018) |
| Supply Voltage Min | 4.5V |
| IC Case / Package | DIP |
| No. of Pins | 8Pins |
| Operating Temperature Min | 0°C |
| MSL | - |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM555CN/NOPB |
| Quantity | Each |
| Product Change Notice (635.54KB) EN | View or download |

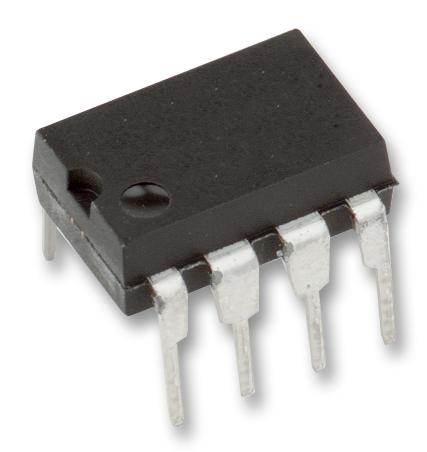

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
