Description
Product Overview
LM324N is a four-independent high-gain frequency-compensated operational Amplifier, designed specifically to operate from a single supply over a wide range of voltages. Typical applications include merchant network and server power supply units, multi-function printers, power supplies and mobile chargers, desktop PC and motherboard, indoor and outdoor air conditioners, washers, dryers, and refrigerators, AC inverters, string inverters, central inverters, and voltage frequency drives, uninterruptible power supplies.
- 3 to 30V supply voltage
- 0.5V/µs slew rate
- 1.2MHz gain bandwidth at RL = 1Mohm, CL = 20pF
- ±7mV, ±3mV offset voltage (max, 25°C)
- 20 / 250nA, 15 / 100nA input bias current at 25°C (typ / max)
- 500V ESD (HBM)
- Operating temperature range from 0°C to 70°C, 14 pin DIP package
Warnings
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
Product details
| No. of Channels | 4Channels |
| Slew Rate Typ | 0.5V/µs |
| IC Case / Package | PDIP |
| Amplifier Type | General Purpose |
| Input Offset Voltage | 3mV |
| IC Mounting | Through Hole |
| Operating Temperature Max | 70°C |
| Qualification | - |
| SVHC | No SVHC (27-Jun-2018) |
| Automotive Qualification Standard | - |
| No. of Amplifiers | 4 Amplifier |
| Gain Bandwidth Product | 1.2MHz |
| Supply Voltage Range | 3V to 30V |
| No. of Pins | 14Pins |
| Rail to Rail | - |
| Input Bias Current | -20nA |
| Operating Temperature Min | 0°C |
| Product Range | - |
| MSL | - |
| Amplifier Case Style | DIP |
| Bandwidth | 1.2MHz |
| Slew Rate | 0.5V/µs |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM324N |
| Quantity | Each |
| Product Change Notice (623.81KB) EN | View or download |

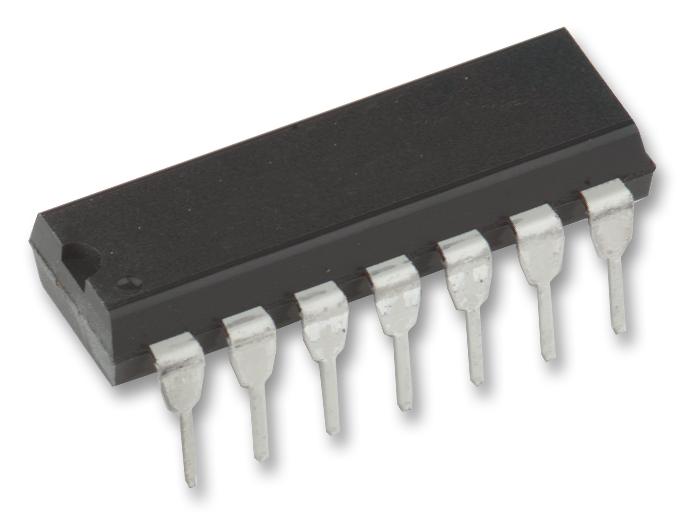

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
